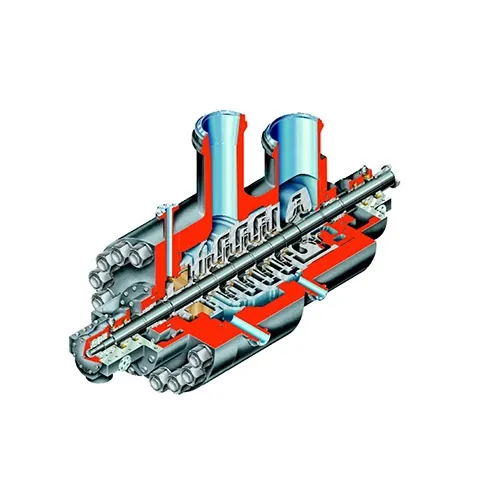

The CHTA is a high-capacity, heavy-duty multistage double-case barrel pump engineered for critical boiler feed applications in supercritical and ultra-supercritical power plants. Built with a robust between-bearing configuration and high-energy diffuser hydraulics, it delivers exceptional throughput, stability and operational reliability under extreme high-pressure, high-temperature utility operating conditions.
Technical Data
- Temperature range
- Temperatures to 232ºC (450ºF)
- Pressure rating
- Pressures to 414 bar (6,000 psi)
Specifications
- Parameter
- Flowserve：Hydraulic Inst.
- Parameter
- ASME Section： VIII
- Parameter
- Flows to： 4,770 m3/h (21,000 gpm)
- Parameter
- Heads to： 3,658 m (12,000 ft)
- Parameter
- Speeds to： 6000RPM
- Size Range
- as required
