Developed for pilot‑operated pressure‑regulation assemblies, the Baker‑Hughes Series 20 Flowgrid® reversible pressure‑control pilot regulator is purpose‑built to function as the main control pilot in unloading‑type pilot systems.
Masoneilan Regulators / MasoneilanThe Model 525 and 526 pressure regulators are engineered for pairing with the 10900‑Series spring‑diaphragm actuators, covering pressure‑reducing, back‑pressure and differential‑pressure control duties.

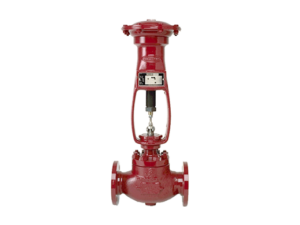

Masoneilan Regulators / MasoneilanBaker‑Hughes Masoneilan 535H and 536H pressure regulators provide accurate pressure reduction for air, liquids, saturated and superheated steam. Available in sizes ¾” through 2”, with full‑area or reduced trim, they are suited for small‑to‑medium flow applications requiring Class IV or VI shut‑off per IEC 60534‑4 / ANSI/FCI 70.2. For service temperatures above the diaphragm temperature limit, fit the actuator beneath the valve‑body centre‑line. A condensate barrier in the sensing line and actuator case protects the diaphragm. Alternative mounting requires an independent condensate‑barrier assembly. Contact the factory for additional information.

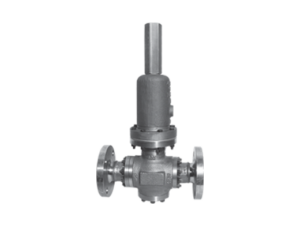

Masoneilan Regulators / MasoneilanThe Masoneilan 172‑Series spring‑loaded direct‑operated pressure‑reducing regulators provide reliable outlet‑pressure control. Available in ½”‑2” (DN15‑DN50), the valves support a wide variety of end connections. The bolted‑flange configuration enables custom face‑to‑face dimensions for easy replacement of legacy equipment. Compact and rugged, they perform well under severe service and feature simple installation and maintenance.

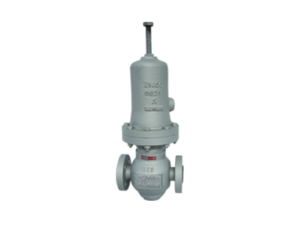

Masoneilan Regulators / MasoneilanMasoneilan 173 Series direct‑acting spring regulators serve steam, gas and liquid applications for pressure relief and back‑pressure control. Available in ½”–2” (DN15–DN50), they ensure durable, continuous industrial service.

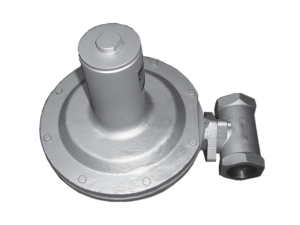

Masoneilan Regulators / MasoneilanThe Masoneilan 174‑Series spring‑loaded direct‑operated regulators perform pressure‑reducing or pressure‑relief control for diverse industrial applications. Equipped with a large‑size diaphragm for precise low‑pressure regulation and a lever‑type mechanism for reliable tight shut‑off, they are offered in ½”‑1‑½” (DN15‑DN40) with a maximum inlet pressure of 145 psig (10 barg). Its simple‑design construction ensures flexible deployment, easy installation and maintenance.
Mooney Regulators / Mooneyhe 900TE Top‑Entry Flexflo® Regulator is a self‑contained pilot‑operated unit for gas and liquid applications. Its top‑entry design simplifies in‑line maintenance, while the cast steel body with integral flanges ensures robust performance. Multiple trim options suit diverse service conditions, with available sizes from 2” to 6”. Matched with a Flexflo pilot, the regulator provides accurate pressure control with a fully enclosed emission‑free structure that retains all process media inside the piping system.
Mooney Regulators / MooneyBaker Hughes Mooney Flowgrid® is a low‑maintenance, self‑contained pilot‑operated regulator delivering stable pressure‑flow control for gases and liquids, with top‑entry access and superior energy‑saving performance versus pneumatic or electric valves.
Mooney Regulators / MooneyBaker‑Hughes Mooney Flowgrid® Slam‑Shut Regulator is an over‑/under‑pressure safety shut‑off device, available standalone or combined with Flowgrid regulators, PED‑certified, with easy‑maintenance top‑entry construction for improved productivity and cost savings.
Mooney Regulators / MooneyThe Mooney FlowMax and FlowMax‑HP reducing regulators provide bubble‑tight shut‑off at every differential‑pressure level and full capacity under very low‑differential‑pressure service. Designed to complement the Mooney Flowgrid® regulator, they offer enhanced capacity, faster response and improved accuracy, retaining the reliable maintenance‑and‑performance advantages of the Flowgrid platform.
