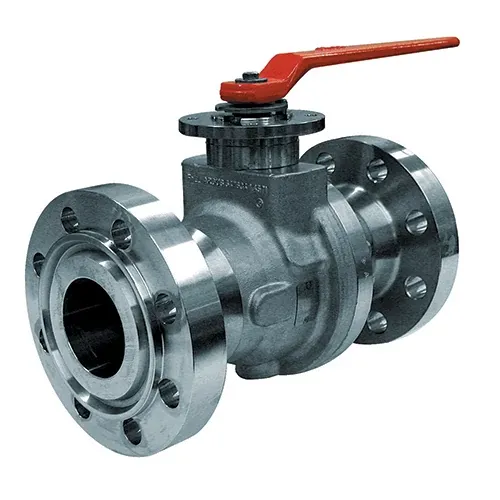

The Argus FK76M is a modular trunnion‑mounted ball valve for oil, gas, petrochemical and chemical services, delivering long‑term tight shut‑off with metal‑seated or soft‑seated options. Standard, severe‑service and custom high‑cycle/high‑temperature variants are available to suit challenging operating conditions. It meets international standards including API 6D, ASME B16.34, ISO 15848 for fugitive emissions and API 607 fire‑safe requirements.
The Argus FK76M trunnion‑mounted ball valve is purpose‑built to provide durable, tight shut‑off performance for oil & gas, petrochemical and chemical processing services. Its modular‑constructed body enables flexible adjustment to varied safety, fugitive‑emission and performance specifications. Supplied in both standard‑duty and severe‑service versions, this ball‑valve model can be configured with either metal‑seated or soft‑seated seats to achieve dependable sealing. Custom‑engineered solutions are also offered for high‑cycle, high‑temperature and other demanding operating conditions. The valve complies with API 6D and ASME B16.34 standards (API 608 available upon request). Fugitive‑emission certification meets ISO 15848, with API 641 certification optional. Fire‑safe construction conforms to API 607 or ISO 10497.
Technical Data
Pressure rating
PN 16 to 160 (DIN) Class 150 to 900 (ASME)
Specifications
API
6D, PED 2014/68/EU, AD-2000, ASME B16.34
FE (Fugitive Emission)
ISO 15848, TA LUFT, EPA, API 641 (on request)
Fire-safe
API 607, ISO 10497
Anti-static
DIN EN ISO 17292, 5.2.7
Anti-blowout stem
DIN EN 736-3 (outside predetermined breaking point)
