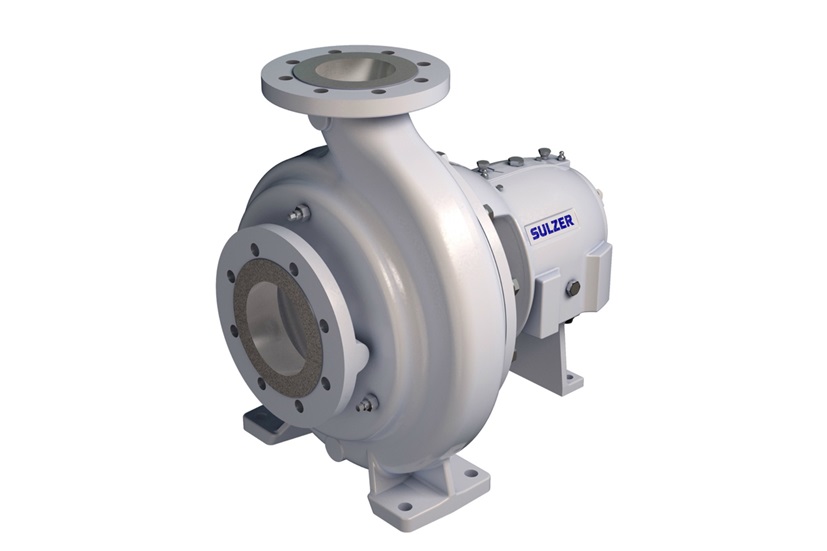

The AHLSTAR A end‑suction single‑stage centrifugal process pump is engineered for demanding industrial duties, delivering dependable process reliability, high hydraulic efficiency and reduced long‑term operating costs.
Technical Data
- Temperature range
- Temperatures: up to 180 °C / 356 °F
- Pressure rating
- Pressures: up to 16 / 25 bar, 230 / 360 psi, depending on material and size
Specifications
- Capacities
- up to 11,000 m3/h / 48,400 USgpm
- Heads
- up to 160 m / 525 ft
- Discharge sizes
- from 32 mm / 1 ¼ in to 700 mm / 28 in
- Maximum speed of rotation
- up to 3 600 rpm
- Performance Range
- AHLSTAR A range centrifugal pumps have large and tight hydraulic coverage to satisfy the most demanding requirements of industrial applications.
