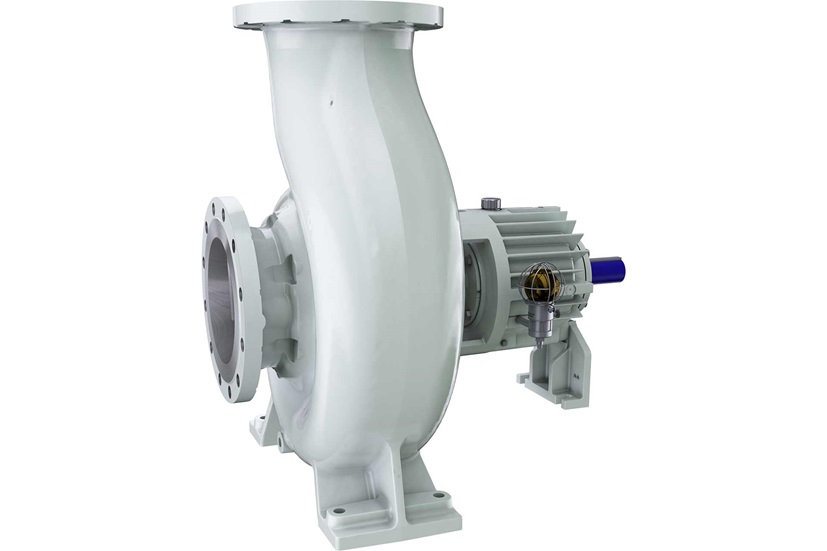

The NRN is a robust horizontal single‑stage end‑suction process pump built for heavy‑duty industrial operation. Its design exceeds the requirements of ISO 5199 and ISO 13709 (API 610) 11th Edition, Type OH1.
Technical Data
- Temperature range
- from -90 to 180°C from -130 to 356°F
- Pressure rating
- 50Hz up to 60 bar;60Hz up to 1’100 psi
Specifications
- Capacities
- 50Hz up to 4’500 m3/h;60Hz up to 19’800 USgpm
- Heads
- 50Hz up to 320 m ;60Hz up to 1’050 ft.
