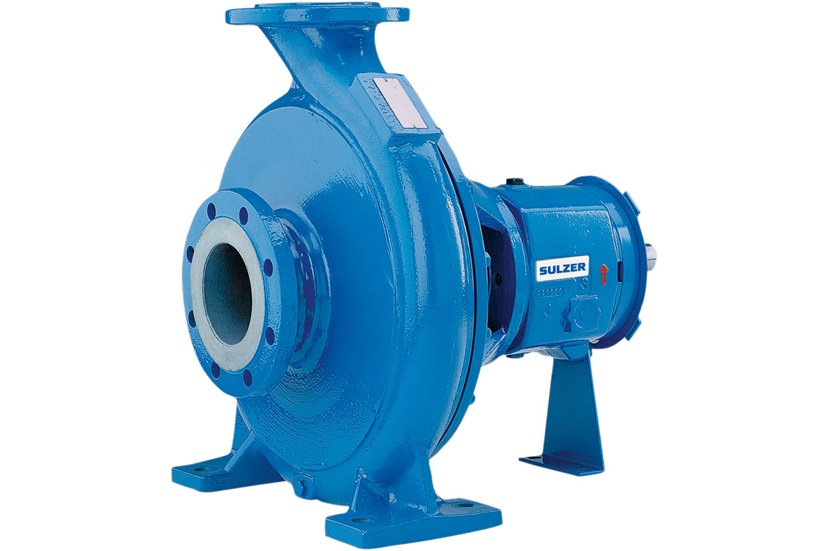

The NB end‑suction single‑stage centrifugal process pump is engineered for demanding industrial applications, ensuring superior process reliability, high efficiency and low operating costs.
Technical Data
- Temperature range
- Temperatures Up to 190°C (370°F)
- Pressure rating
- Pressures Up to 1.6 MPa (230 psi)
Specifications
- Capacities
- Up to 420 l/s (6 600 US gpm)
- Heads
- Up to 190 m (620 ft)
- Discharge sizes
- From 25 mm (1 in) to 250 mm (10 in)
- Maximum speed of rotation
- 3,600 rpm
