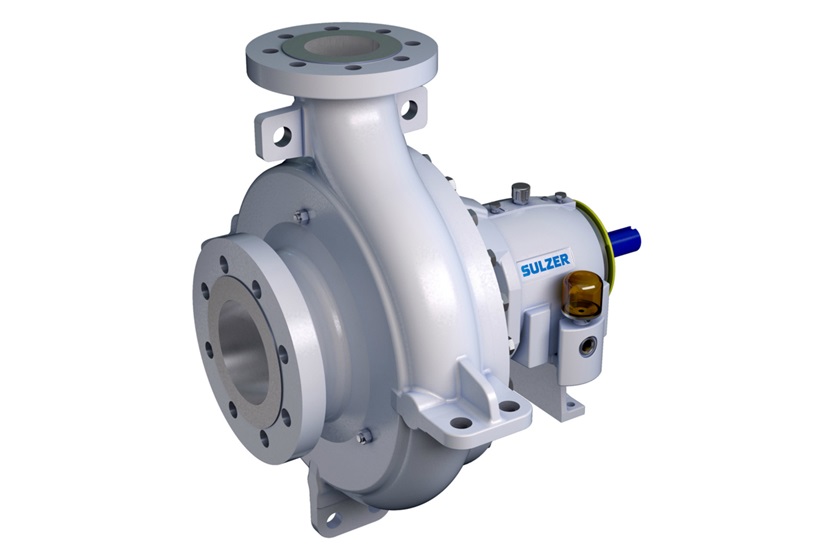

The AHLSTAR EPP/T centerline‑supported end‑suction single‑stage centrifugal process pump is engineered to withstand elevated‑temperature operating conditions, making it ideal for demanding industrial hot‑liquid pumping applications.
Technical Data
- Temperature range
- Temperatures up to 210 °C / 410 °F
- Pressure rating
- Pressures up to 25 bar / 360 psi, depending on material and size
Specifications
- Capacities
- up to 6,100 m3/h / 26,860 US gpm
- Heads
- up to 160 m / 525 ft.
- Discharge sizes
- from 65 mm / 2.5 in to 500 mm / 20 in
- Maximum speed of rotation
- up to 3,600 rpm
