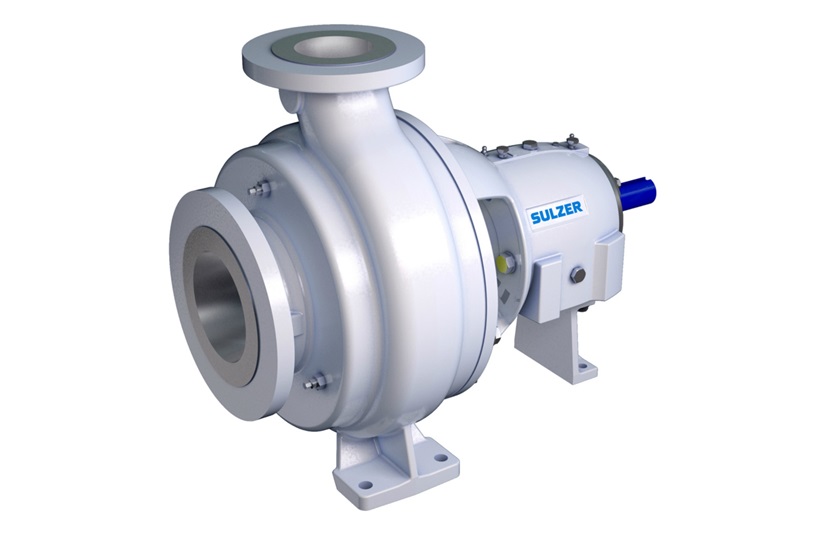

The AHLSTAR NPP/T non‑clogging end‑suction single‑stage centrifugal process pump is engineered for industrial services handling liquids with large‑size solids or abrasive slurries, effectively preventing pump blockage.
Technical Data
- Temperature range
- Temperatures up to 180 °C / 356 °F
- Pressure rating
- Pressures up to 16 bar / 230 psi, depending of material and size
Specifications
- Capacities
- up to 2,000 m3/h / 8,800 USgpm
- Heads
- up to 90 m / 295 ft
- Discharge sizes
- from 50 mm / 2 in to 250 mm / 10 in
- Maximum speed of rotation
- up to 3,600 rpm
