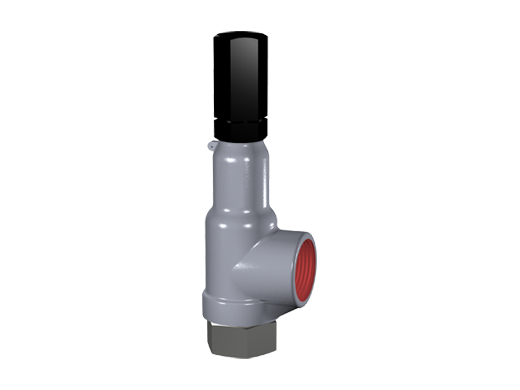

Consolidated Type 19000 Safety Relief Valve

Name: Consolidated Type 19000 Safety Relief Valve
SKU: Consolidated Type 19000 Safety Relief Valve

Consolidated 19000 Series valves feature reliable sealing, large flow capacity and ideal blowdown performance for various working media.

Product category

Consolidated 19000 series pressure relief valves deliver superior tight shut-off, high flow capacity and optimized blowdown performance across a wide range of process fluids. The unit exceeds all performance criteria outlined in ASME standards, and fully meets EU PED directive requirements for overpressure safeguarding with valid CE certification.

Technical Data

Temperature range: -425°F to 1100°F
Pressure rating: 5 psig to 8000 psig
Body material: Stainless/Carbon Steel with stainless trim

Specifications

Inlet Sizes: 1/2" to 2"
Inlet Ratings: Threaded and ASME Class 150 to 2500
Outlet Sizes: 1” to 2 ½”
Outlet Ratings: Threaded and ASME Class 150 to 300
Orifice Sizes: .096 sq. in. through 0.567 sq. in.
