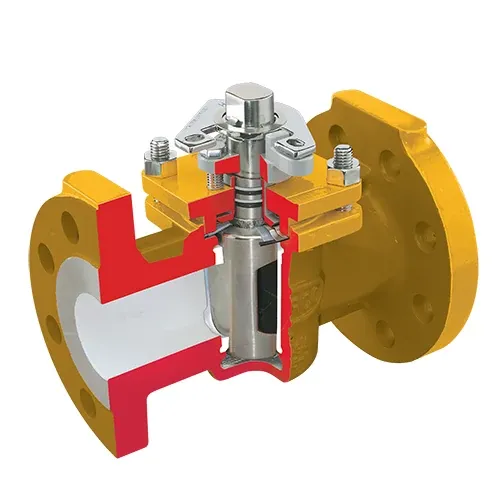

Specified and deployed globally in thousands of refinery installations, the Durco G4BZ-HF Marathon Sleeveline valve is a field-proven non-lubricated plug valve engineered for high-cycle, low-emission refining services. It features an enhanced positive stem sealing system that delivers superior long-term reliability. Designed for critical process safety, the valve ensures absolute tight shutoff and effective fugitive emissions containment, making it a dependable solution for demanding HF alkylation applications with zero-compromise safety requirements.
Technical Data
- Pressure rating
- Pressure Class Range: class 150-300
- Body material
- Seating Material: PFA, Durlon II, UMPHWE, TFEG, TMHT
Specifications
- ASME
- B16.34
- ASME
- B16.10
- API
- 607
- ISO
- 15848-1
- MSS
- SP-134
- API
- 598
- API
- 599
- Phillips/UOP
- approved
- Size Range
- 1/2" - 18"
