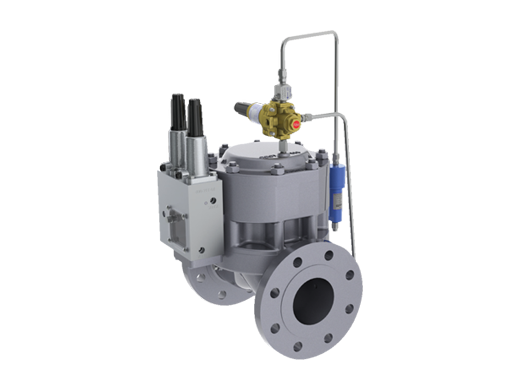

Drawing on Baker‑Hughes’ proven core‑product technologies and extensive process‑application expertise, the Mooney Flowgrid® Slam‑Shut Regulator has been developed to deliver accurate, reliable secondary downstream‑pressure safety protection. It will automatically cut‑off gas flow whenever the sensed or outlet pressure rises above or falls below the predefined set‑point. This safety shut‑off unit can be deployed as a standalone device or integrated directly with a Mooney Flowgrid regulator.
Beyond high‑quality engineered hardware, Baker‑Hughes maintains an unwavering focus on product quality and operational safety. The 2‑inch to 4‑inch sizes of the Slam‑Shut Regulator have obtained global PED EN 14382 certification. Please contact your local sales representative for information on further available certifications.
Widely trusted by global customers, the Flowgrid Slam‑Shut Regulator brings robust safety‑reliability required for gas‑industry operations. Its top‑entry maintenance‑friendly design improves operational productivity, lowers total‑cost‑of‑ownership and delivers long‑term sustainable energy savings.
Specifications
- Size
- 1”-6” (DN 50 -150)
- Body Style
- Single port
- End Connections
- ASME CL150 RF, CL 300 RF & CL 600 RF (2" - 3" only);NPT (1”-2” (DN 25-50) only)
- Temperature Range
- -20°F to 150°F
- Emergency Temperature
- -40°F to 175°F
