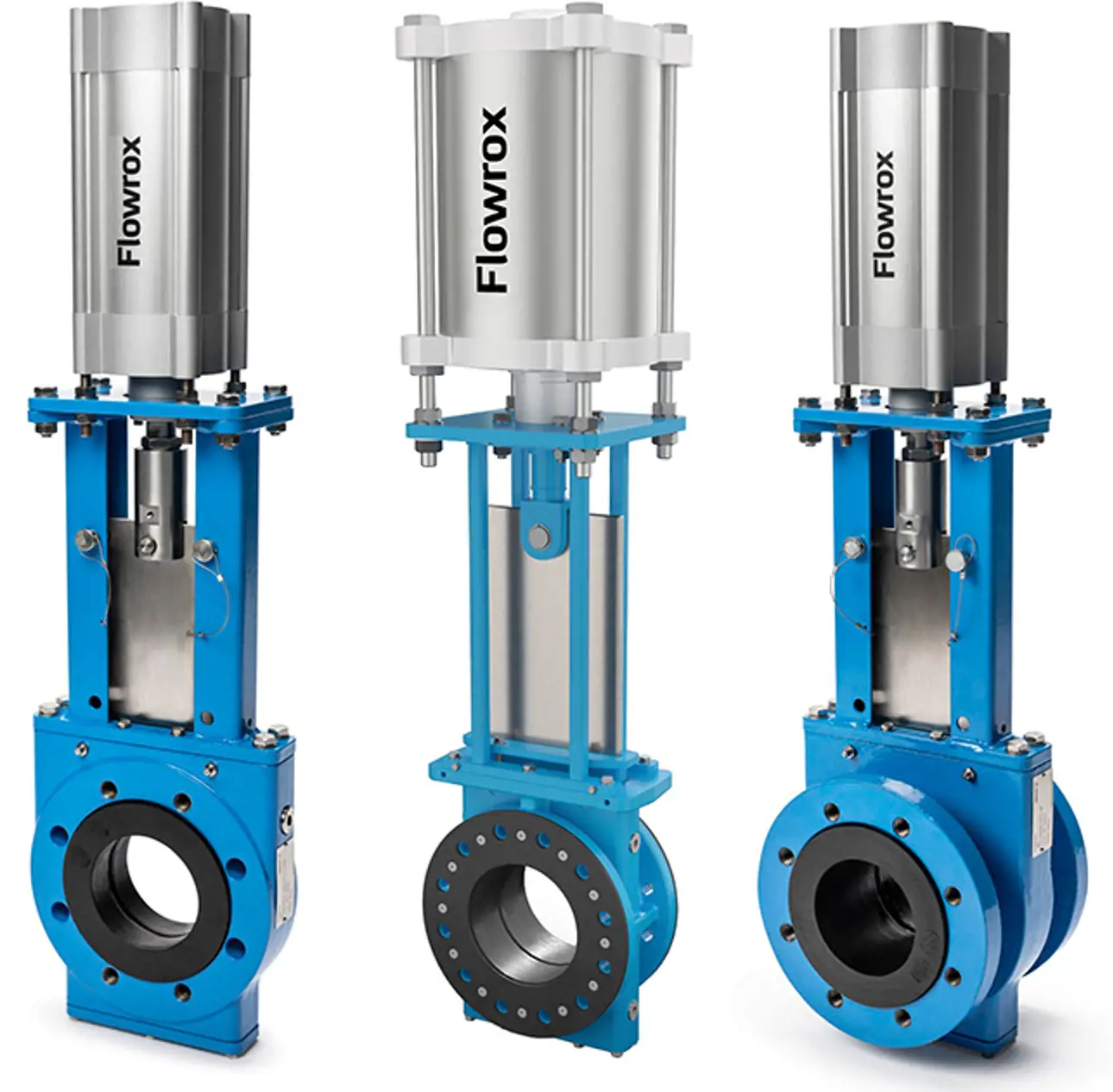

Our heavy-duty slurry knife gate valve reliably isolates flow amid the harshest process environments. Bi-directional flow capability handles backflow, while elastomer sleeves on both sides of the gate ensure tight shutoff. Flowrox knife gate valves are engineered for simple maintenance. Its one-piece cast body removes sealing joints between split body halves. The load distribution ring is built into the valve sleeves. There are merely two serviceable spare parts: sleeve rings and secondary seals.
Specifications
- Series
- SKW ;SKF; SKH
- Size range
- 50 - 600 mm / 2 - 24 in; 80 - 1500 mm / 3 - 60 in; 80 - 600 mm / 3 - 24 in
- Pressure range
- up to 10 bar (145 psi); up to 10 bar (145 psi); up to 20 bar (290 psi)
- Temperature range
- 0 - 100 °C / 32 - 212 °F ;0 - 100 °C / 32 - 212 °F ;0 - 100 °C / 32 - 212 °F
