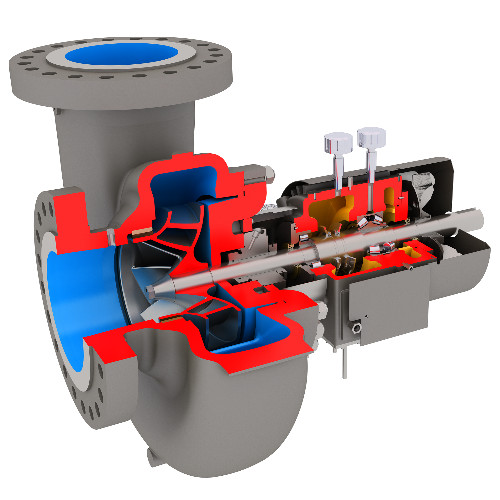

Flowserve HHPX API Process Pump is one of the many innovative Overhung Pumps Flowserve has to offer. Learn more about the specifications here.
Technical Data
- Model series
- API Process Pumps
Specifications
- Parameter
- Flows to 1,800 m³/h (7,930 gpm)
- Parameter
- Heads to 350 m (1,100 ft)
- Parameter
- Pressures to 90 bar (1,305 psi)
- Parameter
- Temperatures to 50°C (122°F)
- Sizes
- DN 200 to 350 (8 to 14 in)
- Pressure class
- PN 90 (1,305 psi)
- Parameter
- Super-duplex (A890, Grade 5A; PREN ≥ 40)
- Parameter
- Optional Alloy 885 (PREN ≤ 40)
Recommended Scenarios
- Water
- Water Management
- Desalination
