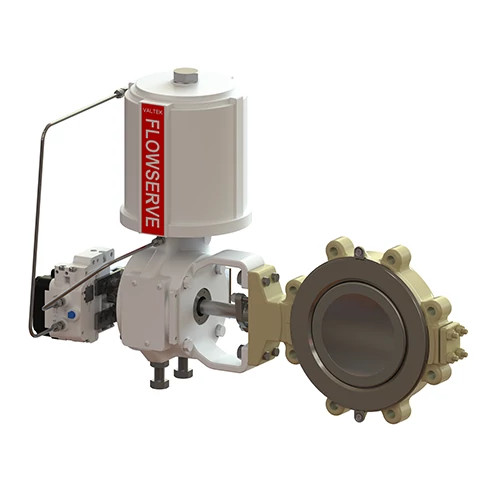

High Performance Butterfly Control Valves – Valdisk is one of the many innovative Rotary Control Valves Flowserve has to offer. Learn more about the specifications here.
Technical Data
- Model series
- High Performance Butterfly Control Valves
Specifications
- Parameter
- Design Standards
- Parameter
- ASME (B16.34, B16.10, B16.25, B16.47), DIN, EN, API 609
- Parameter
- Industry Standards
- Parameter
- ISO 15848-1, NACE MR0175, API 607
- Parameter
- Regional approvals
- Parameter
- PED, CRN, TR CU
- Size Range
- NPS 3 to 60; DIN 80 to 600
- Pressure Class Range
- ASME Class 150, 300, 600, 900, 1500; DIN PN 10 to 40
- Seating Material
- Metal or soft seat
Recommended Scenarios
- Power
- Conventional Steam
- Chemicals
- Basic (Organic & Inorganic)
- Petrochemicals
- Water
- Water Management
- Desalination
- Oil & Gas
- Hydrogen
- Downstream Processing
