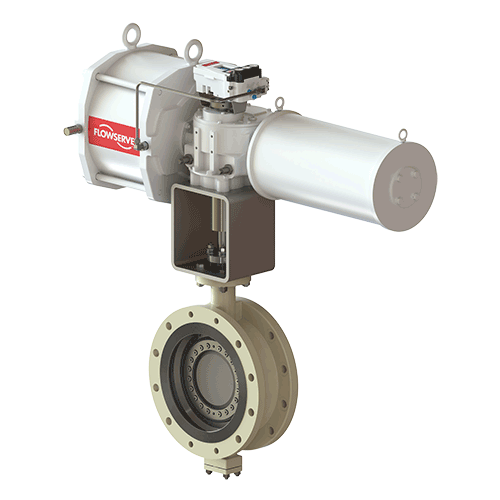

High Performance Butterfly Control Valves – Valtek TX3 is one of the many innovative Rotary Control Valves Flowserve has to offer. Learn more about the specifications here.
Technical Data
- Model series
- High Performance Butterfly Control Valves
Specifications
- Parameter
- ASME B16.34 - Valves--Flanged, Threaded, and Welding End
- API 609 - Butterfly Valves
- Double-Flanged, Lug-and-Wafer Type
- Parameter
- ISO 15848-1 - External leakage of valve stems
- Parameter
- API 607 - Fire Test for Quarter-Turn Valves
- Parameter
- ISO 10497 - Testing of valves — Fire type-testing requirements
- Size Range
- NPS 3 to 60
- Pressure Class Range
- ANSI Class 150, 300, 600, 900, 1500
- Seating Material
- Laminated graphite/metal seat ring, solid metal seat
Recommended Scenarios
- Chemicals
- Basic (Organic & Inorganic)
- Petrochemicals
- Specialty (Fine & Consumer)
- General Industries
- Pulp & Paper
- Oil & Gas
- Downstream Processing
- Power
- Concentrated Solar Power (CSP)
- Conventional Steam
- Water
- Water Management
