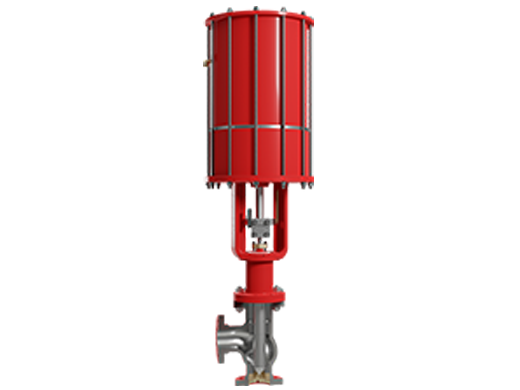

The Masoneilan 71000‑Series single‑ported, heavy top‑guided control valves feature inherent versatility, rendering them ideally suited for a broad range of heavy‑duty process‑critical applications including crude‑oil refining and gasifier service.
Crude‑oil refining produces residual “bottom‑of‑the‑barrel” fouling‑prone hydrocarbons, which are sent to conversion units such as delayed cokers, visbreakers and flexi‑cokers. These contaminated fluids crystallize and turn highly erosive, creating processing challenges unless downstream quenching is implemented. Comparable difficulties are encountered in crude‑oil upgraders that process tar‑sand‑derived bitumen carrying entrained sand particles.
Technical Data
- Pressure rating
- Flanged: ANSI 150 - 2500; JIS 10k-63k; PN 10-400
- Body material
- Carbon steel; stainless steel; chrome-moly
Specifications
- Size
- 1” through 12” (25mm through 300 mm)
- Actuators
- Model 87/88 multi-spring diaphragm; 51/52/53 Piston Cylinder
- Trim
- Heavy top plug guiding coupled with a threaded seat ring design to form an outlet venturi flow path for outlet area protection
- Inherent Characteristics
- Equal Percentage
