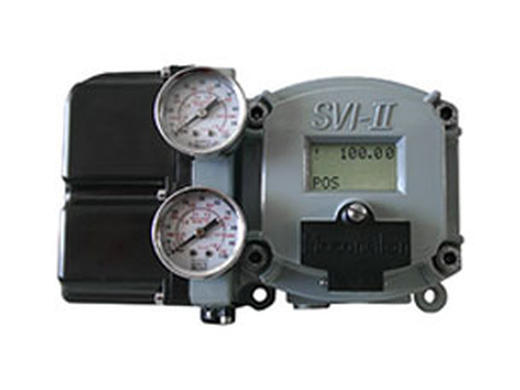

Masoneilan SVI™ II AP Advanced Performance Digital Valve Positioner (HART)
Equipped with a local interface, the Baker Hughes SVI™ II AP adopts a 32-bit microprocessor architecture, serving as a digital valve positioner to control pneumatic actuators through a two-wire 4-20mA signal.
The Baker Hughes SVI™ II AP (Advanced Performance Smart Valve Interface) features a high-precision 32-bit microprocessor-based digital valve positioner equipped with an on-site local interface. Designed for pneumatic actuator regulation, the device operates via a conventional two-wire 4-20mA control loop and supports full bidirectional data communication through the HART® protocol. Boasting a versatile and universal structural design, this positioner enables seamless retrofitting and direct replacement of conventional analog positioners. It is fully compatible with both Masoneilan and third-party pneumatic actuators, covering all single-acting and double-acting application scenarios.
Technical Data
Temperature range
-50°C to +85°C
Pressure rating
Single-Acting: 20 to 100 psi max (1.4 to 6.9 bar) Double-Acting: 20 to 150 psi max (1.4 to 10.3 bar)
Body material
Copper-free Aluminum Housing
Specifications
Signal - Communication
HART 5 or 7 over 4-20mA
Diagnostics
Standard Diagnostics;Advanced Diagnostics
Pneumatics Action
Single or Double Acting, fail safe;Rotary and linear
