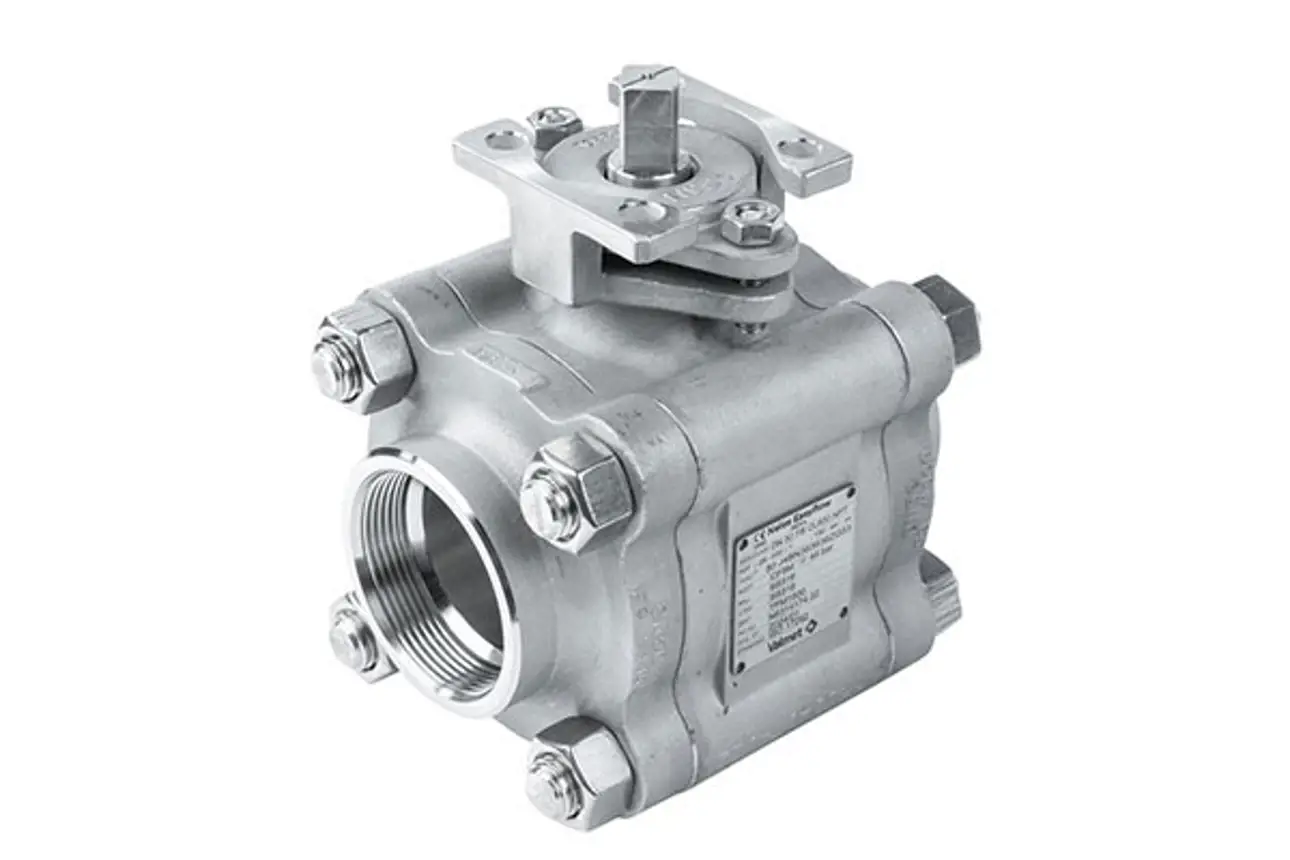

Neles Easyflow J4 3-piece floating ball valves offer an economical alternative to our full-specification valve products. Boasting rugged three-piece body construction, the J4 series ensures long service life and dependable performance.
Specifications
- Nominal diameter
- DN15 – DN50 (NPS 1/2 –2)
- Pressure rating
- Class 800
- End to end dimensions
- Manufacturers standard
- Valve ends
- ASME B16.11 (Screwed and socket weld ends);ASME B16.25 (Buttweld ends)
- Vacuum rating
- 29.91 inch Hg gauge (759.98 mm Hg gauge or 2x10-2 Torr or 4x10-4 psia or 99.99% vacuum)
- Leakage
- No visible leakage
- Standards followed
- ISO 17292, ASME B16.34, API 598, BS EN 12266
- Testing
- API 598
- Safety level
- SIL-3 capable
