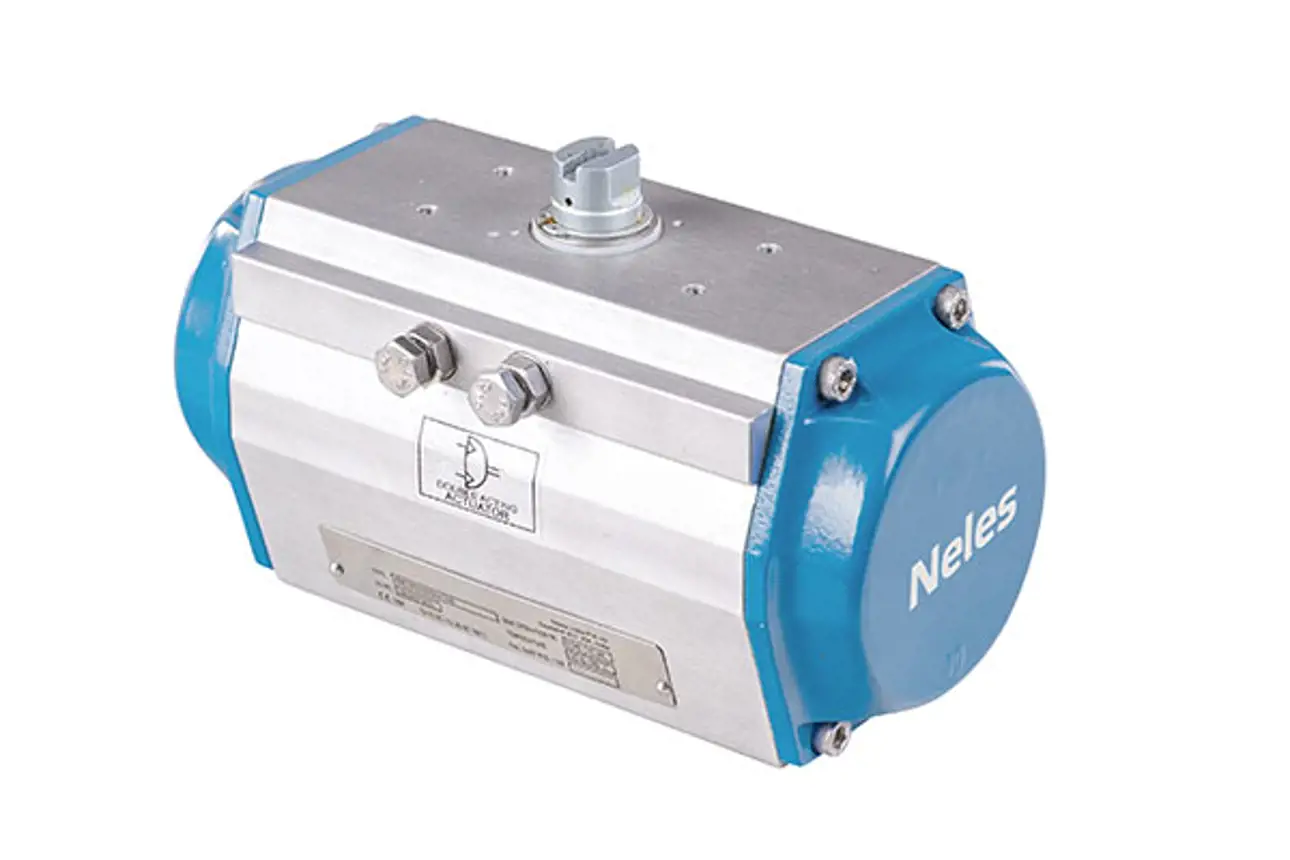

The Neles Easyflow RNP double-opposed piston rack & pinion actuators deliver long service cycles and rugged reliability with an ultra-compact symmetrical design, together with a comprehensive suite of features and options. Engineered for quick, efficient operation of ball, butterfly and other rotary-style valves.
Specifications
- Series
- Pneumatic quarter-turn double-opposed piston rack and pinion actuator
- Version
- Double acting;Spring return
- Body material
- Hard anodized aluminum;Carbon steel;Stainless steel
- Max operating pressure
- 8 bar
- Torque range
- 4 Nm to 5005 Nm
- Temperature ranges
- General : -20 °C to +80 °C
- High
- -20 °C to +125 °C
- Arctic
- -60 °C to + 80 °C
- Protection class
- IP67M, IP68M
- ATEX class
- ATEX 94/9/EC
- Mounting face
- ISO 5211, VDI/VDE 3845
