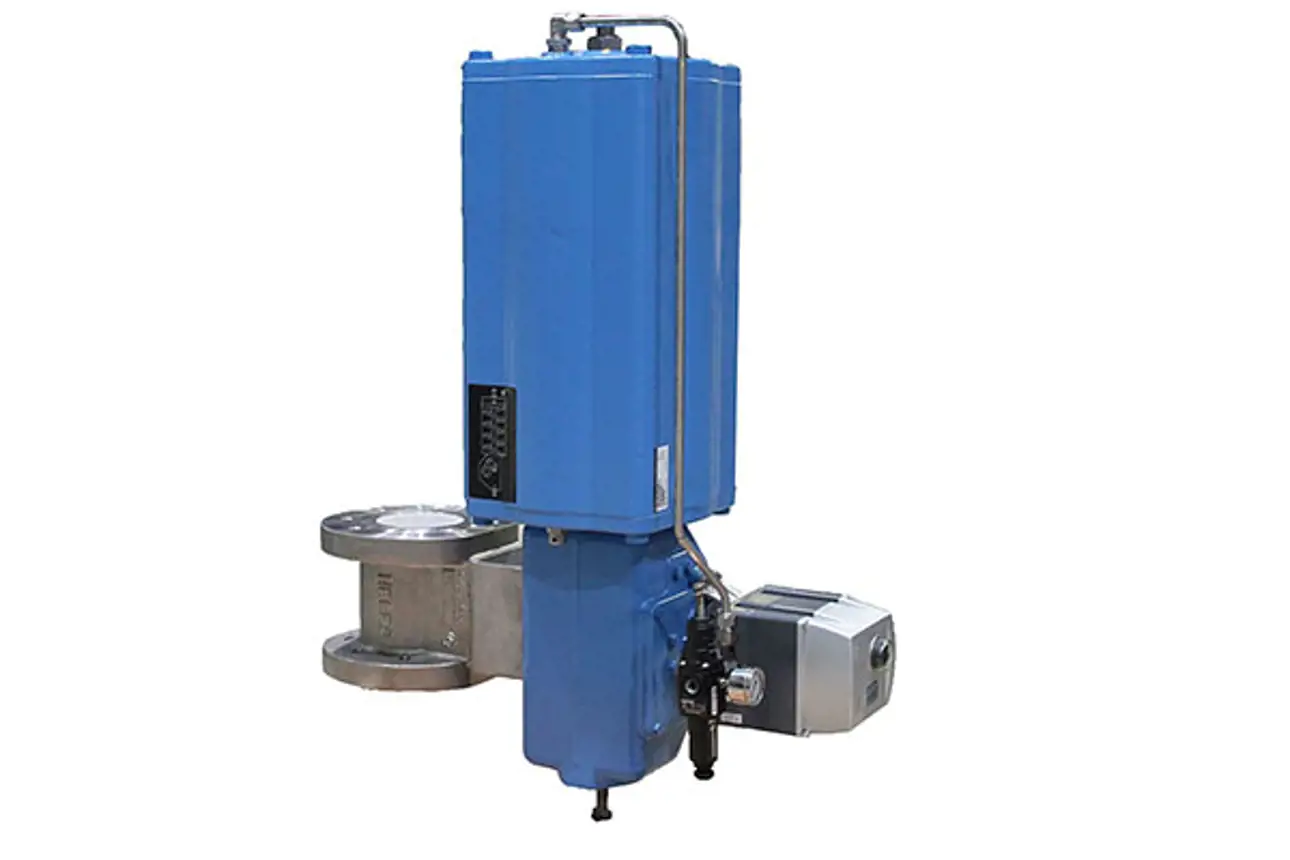

Neles high-pressure ball valves adopt proven valve technologies, including application-specific seat selection, material and coating solutions, and heavy-duty bearing construction. These characteristics deliver extended service life even under the most severe operating conditions within oil and gas processing.
Specifications
- Construction
- Flanged, trunnion mounted & seat supported, full & reduced bore ball valve
- Size range
- DN 150 – 600 / NPS 6” – 24” series XH, ASME Class 600 / EN PN 63, 100;DN 50 – 600 / NPS 2” – 24” series XH, ASME Class 900 / EN PN 160;DN 15 – 200 / NPS 1/2” – 6”, series XS
- Face to face
- ASME B16.10
- Pressure ratings
- ASME 600 & 900 / EN PN 63, 100, 160
- Temperature range
- -50 °C … +600 °C / -58 °F … +1110 °F
