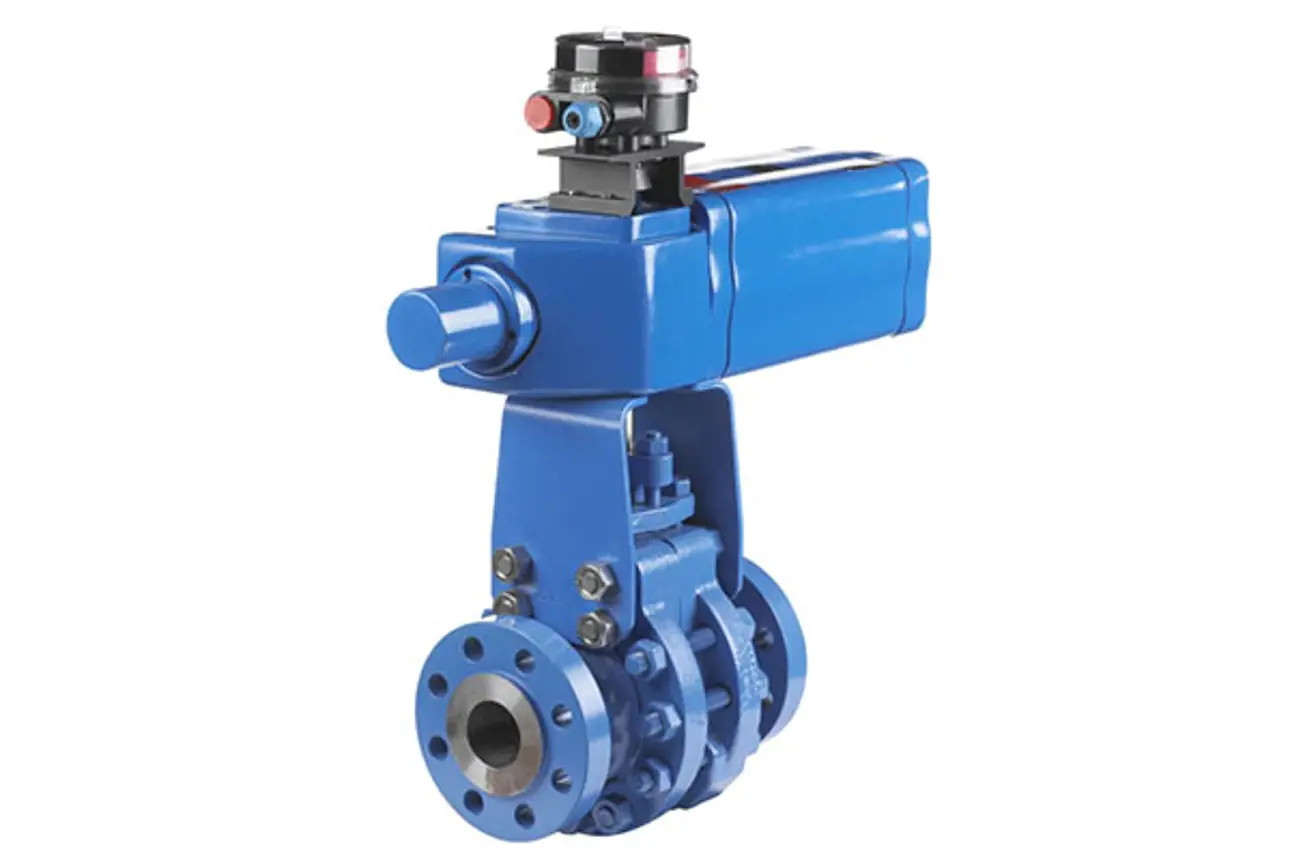

The Neles Modular Ball Valve Series M delivers optimized performance for pulp and paper applications. Drawing on decades of experience, Neles has refined this product line to enable straightforward product selection for pulp and paper end users while maintaining industry-leading performance. This valve series includes both seat-supported and trunnion mounted ball valve configurations. A wide selection of seat types, size ranges and material grades provides comprehensive coverage for pulp and paper processes.
Specifications
- Construction
- Flanged, seat supported & trunnion mounted, full bore ball valve
- Size range
- DN 25 – 600/NPS 1”–24” (M1-series);DN 25 – 600/NPS 1”–24” (M2-series);DN 100 – 400/NPS 4”–16” (M9-series)
- Face to face
- M1: ISO 5752;M2: ASME B16.10;M9: Old Neles series P (internal)
- Pressure ratings
- EN PN 10-40, ASME 150-300, JIS 10K-20K
- Temperature range
- -50 °C … +260 °C / -60 °F … +500 °F
