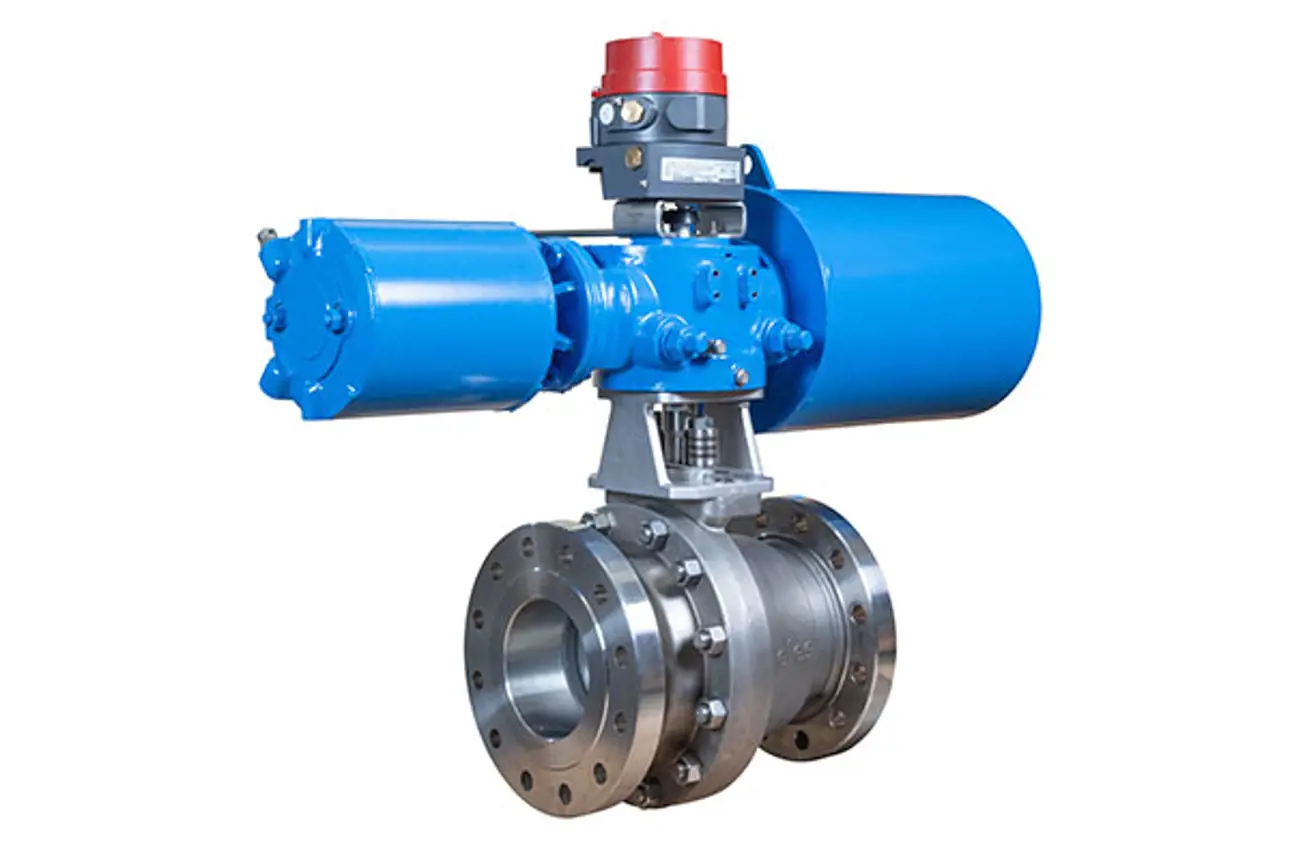

Neles M series pocket feeder valve handles separator duties in pulp and paper processes, automatically extracting sand and fine debris. Ideal for continuous pulp digester chip chute circulation and junk trap systems. Supplied as a complete package: full-bore ball valve, pneumatic actuator, limit switches and solenoids for internal cavity purging.
Specifications
- Construction
- Flanged, seat supported, Pocket feeder construction, 180° operation ball valve
- Size range
- DN 150 & 200 / 6" & 8"
- Pressure classes
- PN 10 - 16 / ASME 150
- Temperature range
- -50 to +250 °C / -60 to +480 °F
