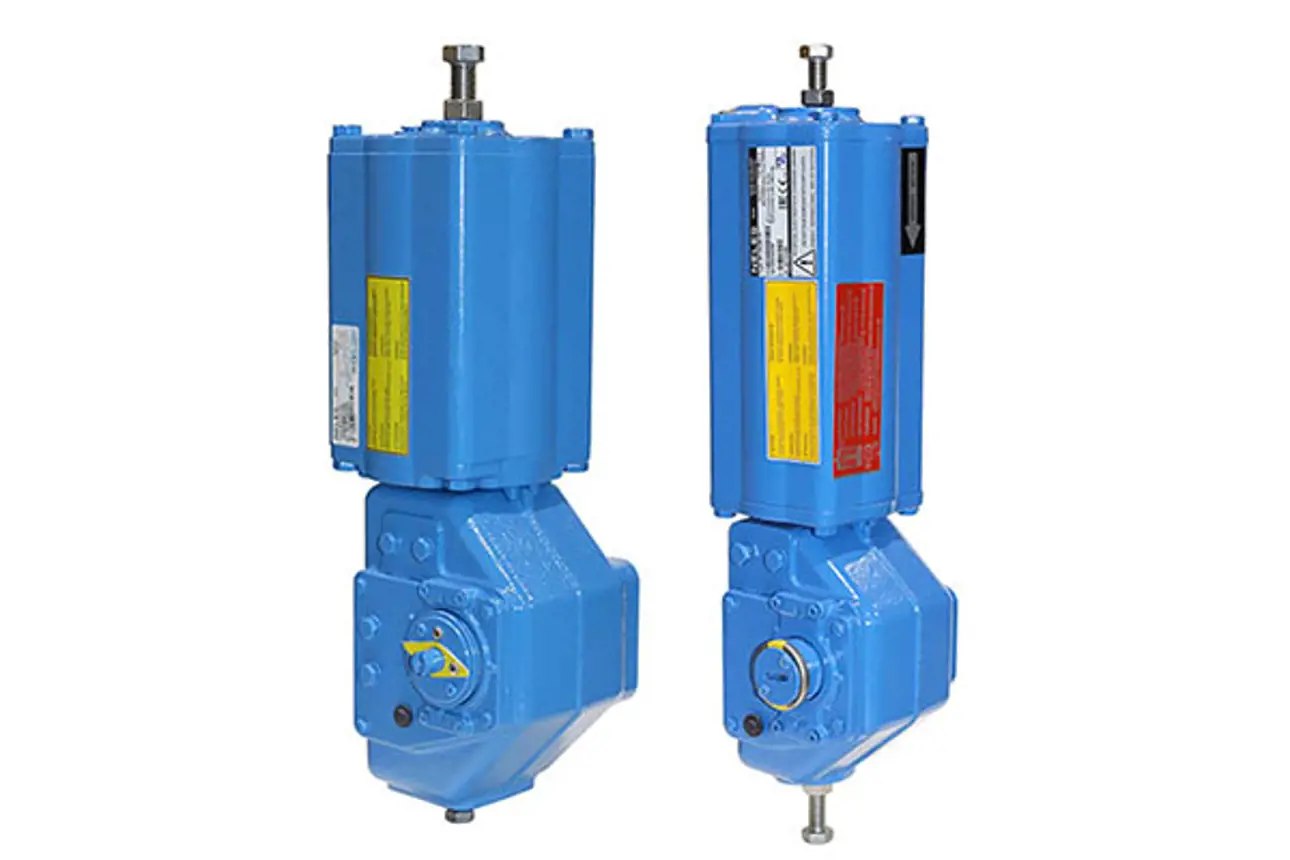

Neles B1-series piston quarter-turn actuators (double acting and spring return variants) are engineered for modulating control and on-off service. Featuring exceptionally long cycle life, they can drive nearly all types of rotary valves.
Specifications
- Type
- Pneumatic cylinder actuator
- Series
- B1C - double action ;B1J - spring return
- Supply pressure
- 2.8 - 10 bar
- Torque range
- 28 - 100000 Nm
- Temperature ranges
- -55 to +120 °C
- Protection class
- IP66, IP67 (IEC 60529)
- ATEX class
- Ex II 2G/D c IIC TX
- Mounting face
- ISO 5211, VDI/VDE 3845
