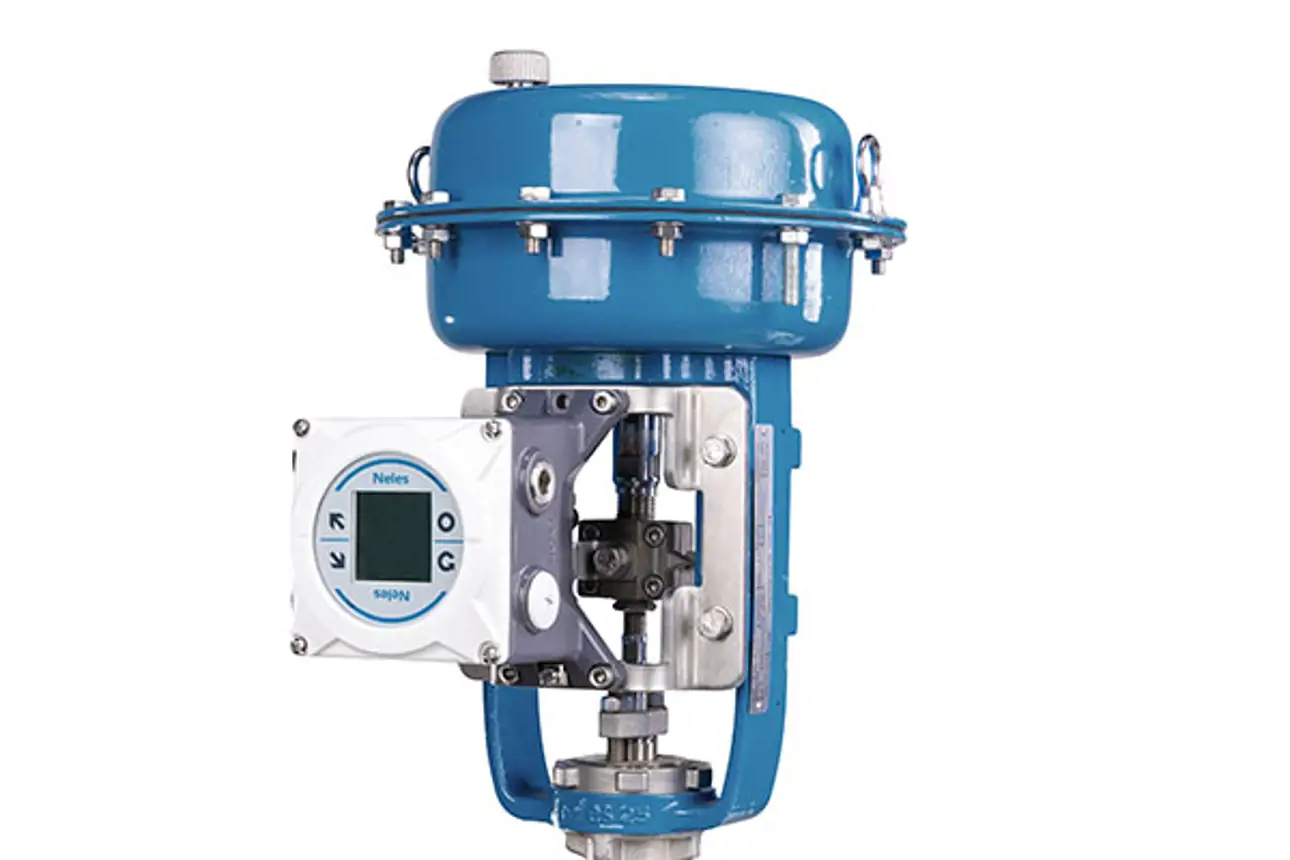

Neles VD-series spring return diaphragm linear actuators are engineered for modulating control and on-off service. Featuring exceptionally long cycle life, they are ideal for linear valves requiring low to medium thrust.
Specifications
- Type
- Pneumatic diaphragm actuator
- Series
- VD - linear single acting
- Operating pressure
- 3.2 - 4.2 bar /46 - 60 psi
- Temperature range
- -55 …+85 °C / -67 …+185 °F
- Output thrust
- 1890 - 22800 N / 424 - 5125 lb.f
- Spring range options
- General spring 0.8 bar - 2.6 bar (11 psi - 37 psi);Strong spring 1.5 bar - 3.4 bar (21 psi - 48 psi)
