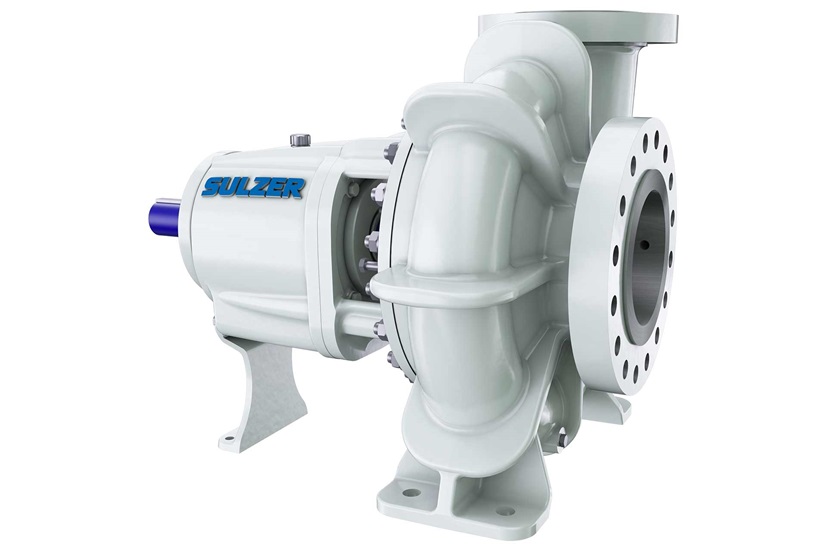

The PRF pump range is purpose‑built for handling clean liquids under high suction pressure conditions. Its optimized structural design delivers maximum pressure resistance and extended service life.
Technical Data
- Temperature range
- Temperatures: 50Hz up to 200°C ;60Hz up to 392°F
- Pressure rating
- Pressures: 50Hz up to 75 bar;60Hz up to 1’090 psi
Specifications
- Capacities
- 50Hz up to 1’350 m3/h ;60Hz up to 7’250 USgpm
- Heads
- 50Hz up to 95 m ;60Hz up to 445 ft.
- Maximum speed of rotation
- 50Hz up to 3’000 rpm ;60Hz up to 3’550 rpm
