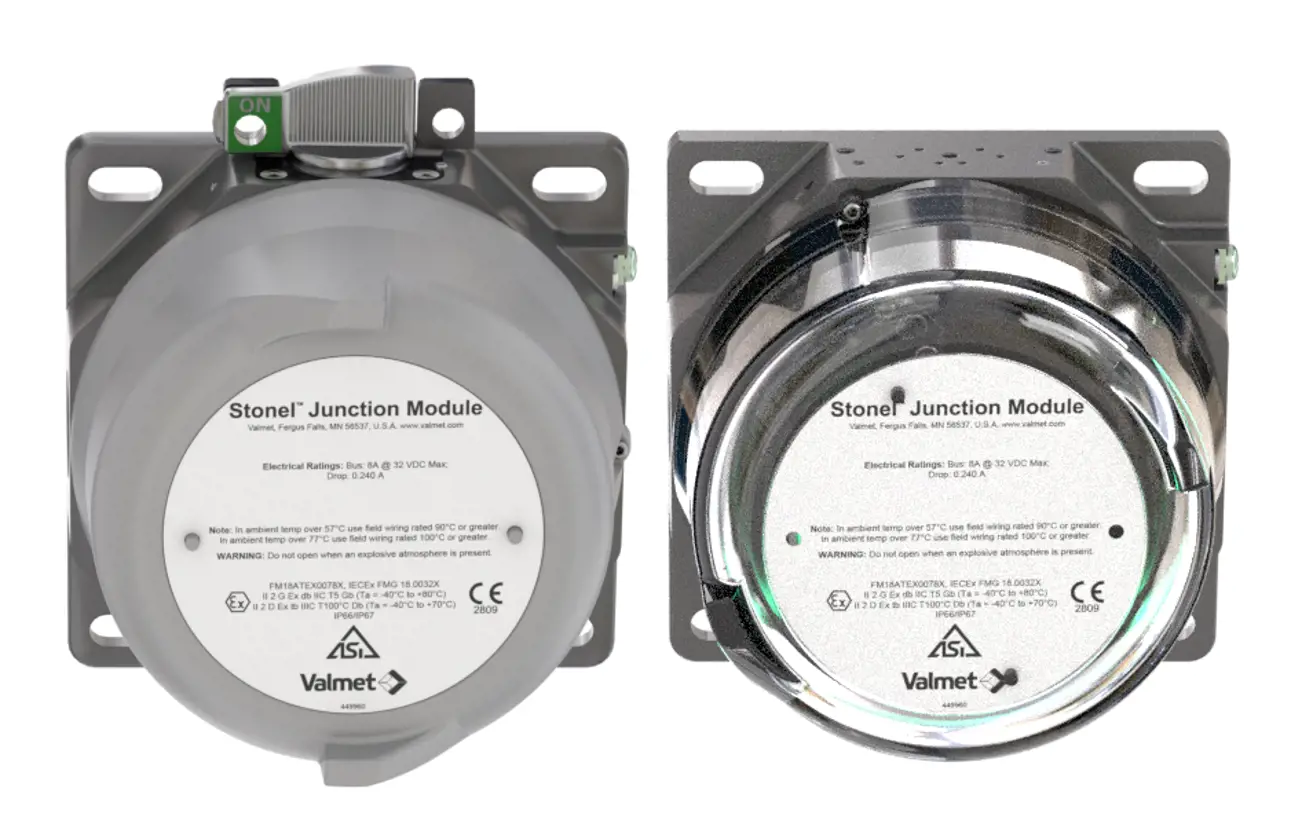

Stonel JX junction module enclosure is built as an environmentally hardened platform, capable of withstanding extreme corrosive and hazardous process conditions. The JX offers versatile bus networking functions compatible with mainstream protocols adopted in process industries.
Specifications
- Functions
- Drop connectors, I/O modules, network accessories
- Communication options
- AS-Interface, FOUNDATION Fieldbus, Profibus, Modbus, DeviceNet
- Temperature range
- -40 °C ... +80 °C / -40 °F ... +176 °F
- Material
- Epoxy coated aluminum optional polycarbonate cover
- Flow capacity
- 1.2Cv
- Hazardous area approvals
- Ex i, Ex d, Class I, Division 1 and Class I, Division 2
