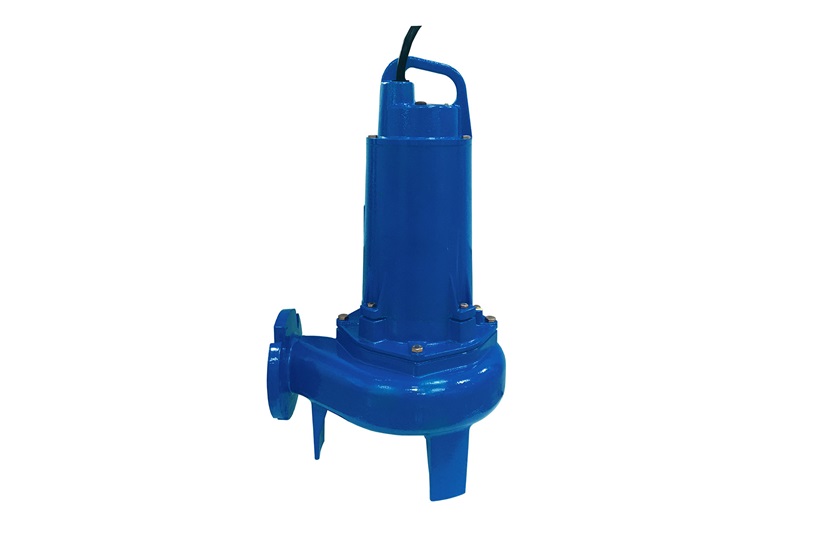

Engineered for raw‑water, wastewater and sewage transfer for buildings and sites within domestic and commercial environments. It features a free solids passage up to 65 mm. The pump‑motor assembly constitutes a pressure‑tight, encapsulated and fully flood‑proof unit.
Technical Data
- Temperature range
- Temperatures: 40°C / max. 60°C for five minutes
Specifications
- Capacities
- Up to 109 m³/h / 480 US gpm
- Heads
- 30 m / 98 ft
- Discharge sizes
- 3” ANSI 125 / DN 75 NBR 7675 horizontal flange
- Maximum speed of rotation
- 3,450 rpm
- Rated power
- 0.75 – 5.5 kW / 1.0 – 7.5 cv (only 60Hz motors available)
