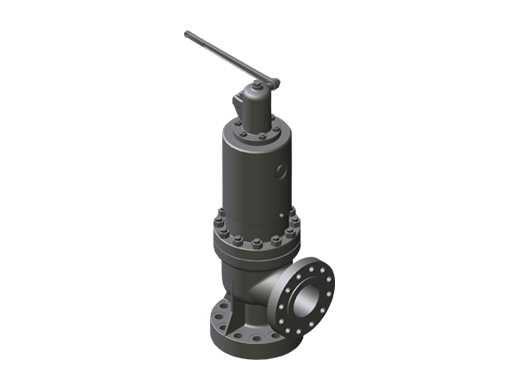

The Baker Hughes CONSOLIDATED® 31700 safety valve is purpose‑engineered for nuclear‑service environments. It integrates numerous enhanced features and design improvements derived from long‑term operational feedback across nuclear‑power‑plant projects. Optimized for straightforward on‑site maintenance and built for outstanding long‑term reliability, this valve meets the most rigorous requirements of nuclear‑power operators. The CONSOLIDATED® 31700‑series steam safety valve is fully designed and certified in accordance with ASME BPVC Section III for deployment within nuclear‑power systems.
Technical Data
- Temperature range
- Up to 700°F
- Pressure rating
- 100 to 3000 psig
- Body material
- Stainless Steel
Specifications
- Inlet Sizes
- 1 ½” to 3”
- Inlet Ratings
- ASME Class 2500
- Outlet Sizes
- 4” to 8”
- Outlet Ratings
- ASME Class 300 to 600
- Orifice Sizes
- 1, 3, 5, 6, K, L, M, N and P
