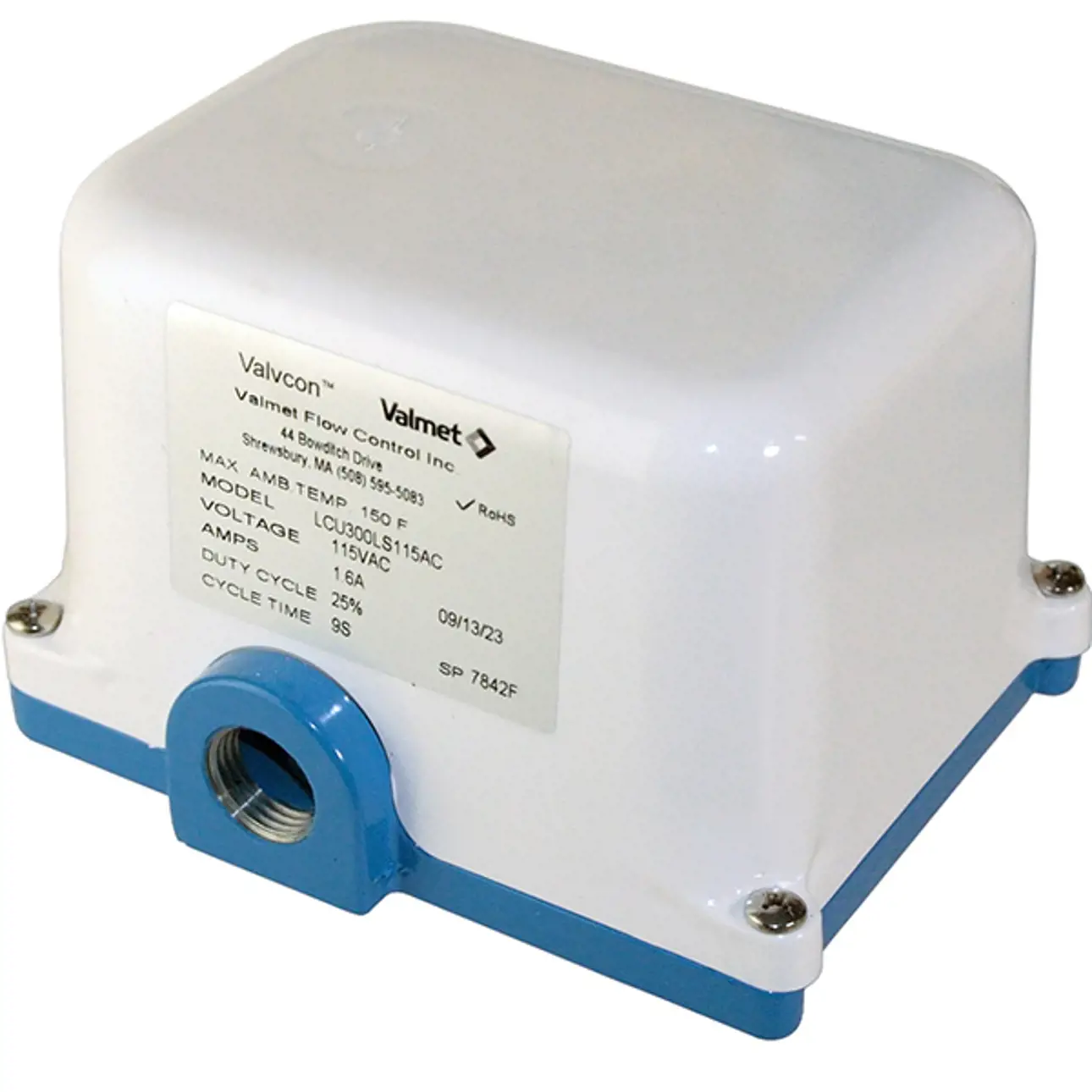

Valvcon LCU-Series actuator: highly cost-effective, reliable & low-maintenance. Offers long-term operational benefits beyond low initial cost; built for unidirectional actuation applications.
Specifications
- SERIES
- LCU
- TORQUE OUTPUT
- 17-68 Nm, 150-600 lb-in, 12-50 lb-ft
- DUTY CYCLE
- 25% or 80%
- OPERATION
- Undirectional
- ENCLOSURE
- NEMA 4/4X
- TEMPERATURE RANGE
- -40°C to 66°C / -40°F to 150°F
- VOLTAGE
- 24VAC, 115VAC, 230VAC duty cycle 25%;12VDC, 24VDC duty cycle 80%
