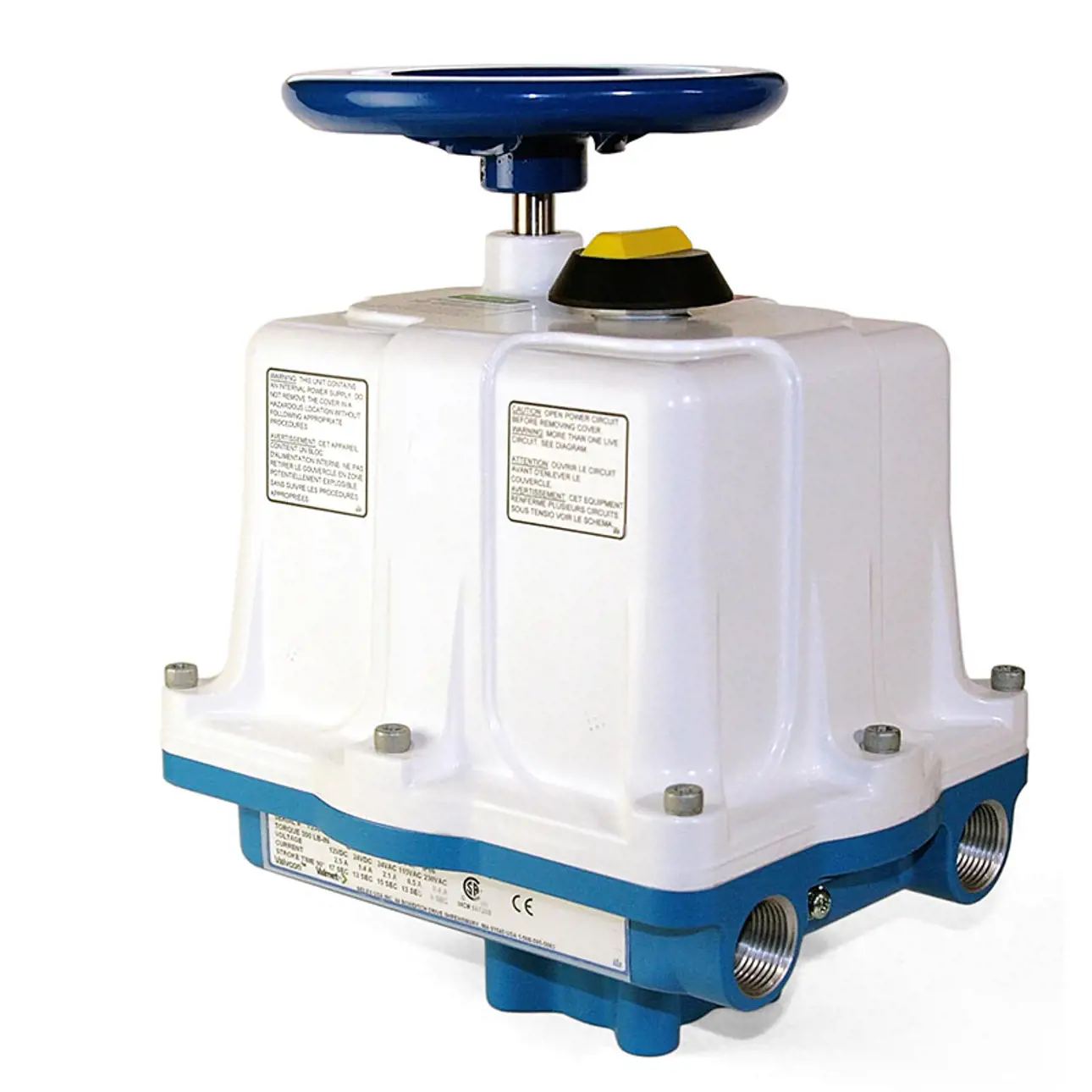

Compact, tough and dependable, Valvcon V-Series electric actuators are built to drive quarter-turn valves and dampers. You can choose between NEMA 4/4X or explosion-rated NEMA 4/4X/7&9 housings. Hardened steel spur gears and ISO 5211 standard mounting interfaces come as standard. The product is CSA (C US) and CE certified, while WX models are ATEX approved.
Specifications
- Series
- V & LV
- TORQUE OUTPUT
- 17-68 Nm, 150-600 lb-in, 12-50 lb-ft Series V;113-339 Nm, 1000-3000 lb-in, 83-250 lb-ft Series LV
- DUTY CYCLE*)
- 75% @ 40°C / 104°F
- OPERATION
- Reversing
- ENCLOSURE**)
- NEMA 4/4X or NEMA 4/4X/7&9
- TEMPERATURE RANGE
- -40°C to 66°C / -40°F to 150°F;ATEX Temperature range -20°C to 66°C / -4°F to 150°F
- VOLTAGE
- 115VAC 50/60 Hz (1PH), 230VAC 50/60 Hz (1PH);*) Duty Cycle is 55% for 3000 lb-in models;**) CSA (C US) Certification and CE Compliance standard; NEMA 4/4X/7&9 models are Class I, Div. 1, Gr. C & D; Class II, Div.1, Gr. E, F & G; Class III; and also certified to ATEX Directive 2014/34/EU: Ex db IIB T6 Gb, IECEx CSA 14.0057X.
