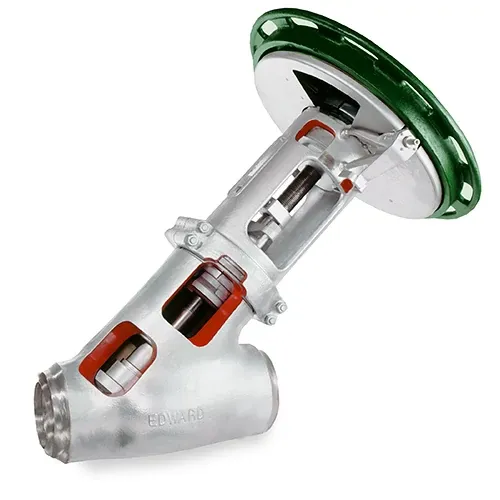

The Edward® Flite‑Flow Y‑Pattern Globe Valve is engineered to deliver maximum flow capacity and minimal leakage under high‑pressure, high‑temperature operating conditions. It is available in two construction variants: cast body as standard configuration, with forged‑body design offered as an optional upgrade.
Specifications
- ASME
- B16.34
- ASME
- Section III
- Parameter
- CAST
- Size Range
- DN 65 to 800; NPS 2½ to 32
- Pressure Class Range
- PN 50 to 760; Class 300 to 4500
- Seating Material
- Metal
- Parameter
- FORGED
- Size Range
- DN 250 to 400; NPS 10 to 16
- Pressure Class Range
- PN 420; Class 2500
- Seating Material
- Metal
