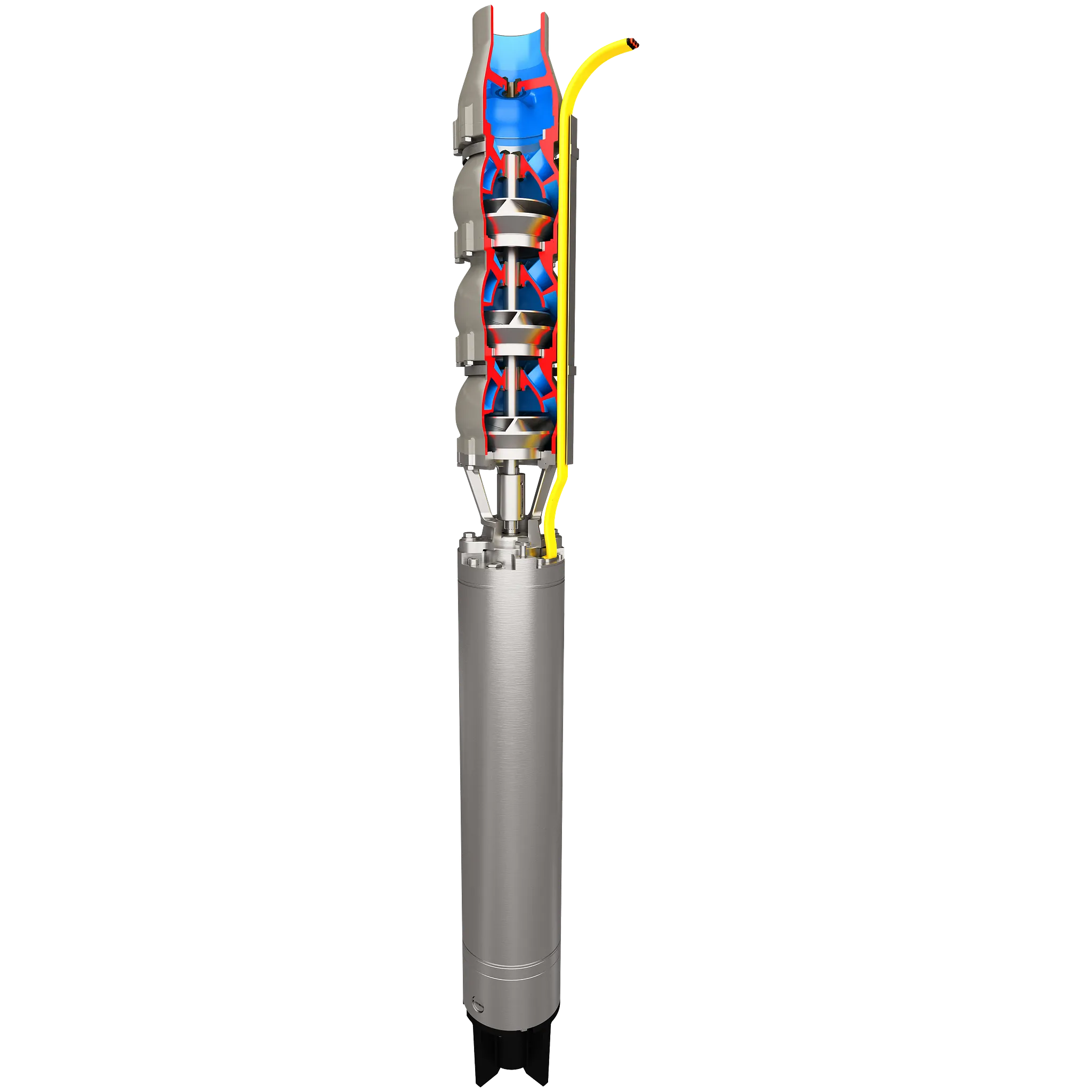

The Byron Jackson H2O deep‑well pump is equipped with direct‑coupled water‑filled motors. Available in single‑stage or multistage configurations, it is built for continuous‑duty operation. A broad portfolio of hydraulic designs, material options and auxiliary selections delivers optimized cost‑performance for diverse field applications.
Specifications
- Flowserve
- Flows to 4500 m³/h (19800 gpm);Heads to 800 m (2625 ft);Motor sizes to 2237 kW (3000 hp)
- Size Range
- Pump sizes from 150 mm (6 in) to 762 mm (30 in), motor sizes from 150 mm (6 in) to 762 mm (30 in);Motor power up to 2237 kW (3000 hp) 2-8 pole designs, 50 & 60 Hz;Voltage up to 6600V
