Consolidated Type 13900 Series Pilot-Operated Safety Relief Valve | CoordWorx
Home/Products/Consolidated Type 13900 Series Pilot-Operated Safety Relief Valve
PRODUCT DETAIL

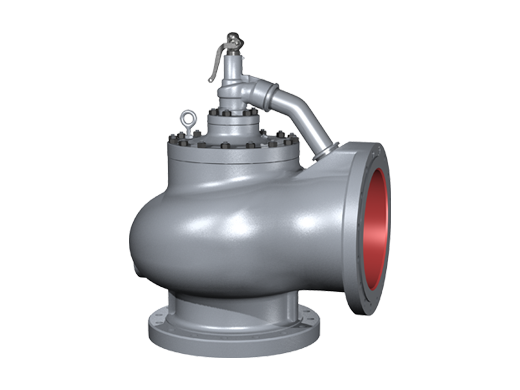

Consolidated Type 13900 Series Pilot-Operated Safety Relief Valve
Type 13900 Series pilot-operated safety relief valves meet ASME Section VIII criteria, balancing simple build and exceptional flow performance. Built with a small fail-safe pilot and high-capacity main valve that allows up to 200 square inches of orifice area, this model reduces the quantity of valves required for system overpressure defense.
Engineered in accordance with ASME Section VIII standards, the Type 13900 Series pilot-operated safety relief valves deliver superior flow capacity alongside a streamlined structural layout. Each unit comprises a compact fail-safe pilot valve paired with a large-flow main valve module. The main valve supports orifice areas as large as 200 square inches, cutting down the total valve quantity needed to safeguard systems against overpressure risks.
Technical Data
Temperature range
250°F to 550°F
Pressure rating
50 psig to 300 psig
Body material
Carbon steel base and 316 stainless steel internal components.
Specifications
Inlet Sizes
16” through 20”
Inlet Ratings
ANSI Class 300
Outlet Sizes
18” though 24”
Outlet Ratings
ANSI Class 150
Orifice Sizes
114.0 sq. in., 143.0 sq. in., 176.0 sq. in. and 200.0 sq. in.
