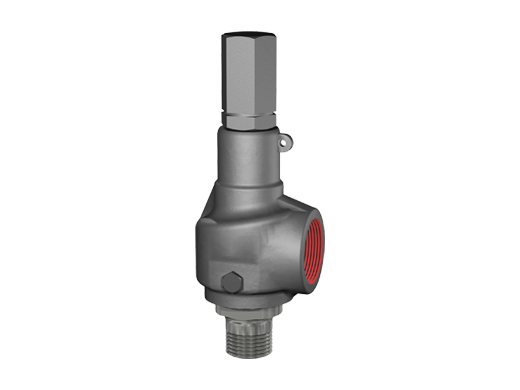

BHGE’s Consolidated 1982 Series safety relief valve features threaded ends and is designed to operate with steam and liquid process media.
Technical Data
- Temperature range
- -20°F to 800°F
- Pressure rating
- 10 psig to 500 psig
- Body material
- Carbon steel bonnet with stainless steel trim
Specifications
- Inlet Sizes
- 1/2" through 2"
- Inlet Ratings
- Threaded
- Outlet Sizes
- 3/4" through 2 1/2"
- Outlet Ratings
- Threaded
- Orifice Sizes
- 0.121 sq. in. through 1.399 sq. in.
