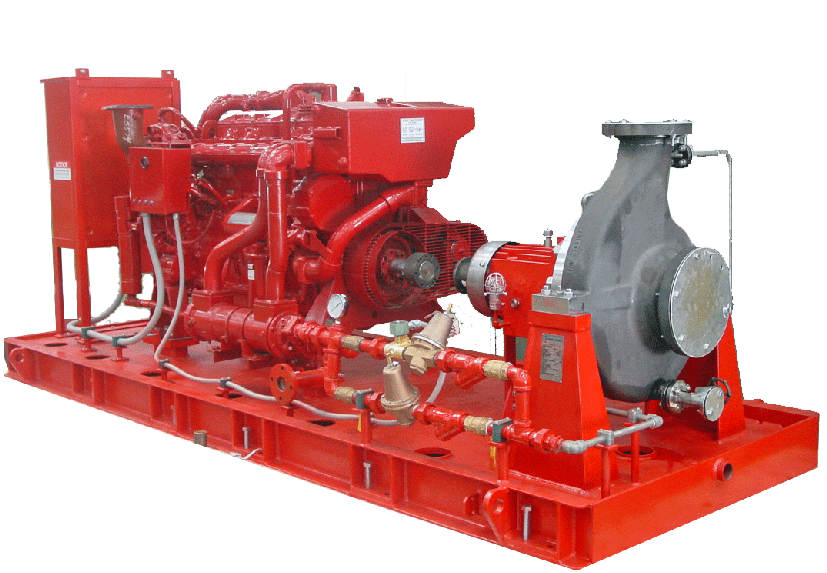

Reliable firefighting pump packages are available in standard or custom‑built configurations, engineered and manufactured to comply with the latest NFPA 20, UL and general industrial fire‑service standards. Depending on the supply‑tank location, these packages feature either horizontal split‑case pumps or vertical turbine pumps as the main fire‑water pump, together with appropriate jockey pumps.
Technical Data
- Temperature range
- Temperatures Up to 100°C / 212°F
- Pressure rating
- Pressures Up to 20 bar / 290 psi
Specifications
- Capacities
- Up to 1140 m3/h / 5000 US gpm
- Heads
- Up to 175 m / 570 ft
- Discharge sizes
- 350 mm / 14 inches
