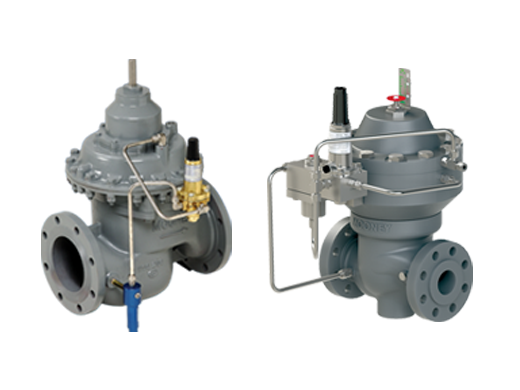

Baker‑Hughes Mooney™ FlowMax and FlowMax‑HP pressure‑reducing regulators deliver bubble‑tight shut‑off performance across all pressure‑differential conditions, while maintaining full flow capacity even at extremely low differential pressures. This innovative product complements the well‑established Mooney Flowgrid® regulator. Optimised for maximum throughput, rapid response and precise pressure control, the FlowMax inherits many proven maintenance‑friendly and high‑performance features for which the Flowgrid regulator is widely recognised.
Technical Data
- Connection type
- CL150 FlowMax (250 psi rating) CL300 FlowMax HP CL600 FlowMax HP
Specifications
- Size
- 2” to 6”
- Body Style
- Single Port
- End Connections
- Screwed (FlowMax)
- Temperature Range
- 20°F to 150°F
- Emergency Temperature
- Minimum/Maximum: -40°F to 175°F
