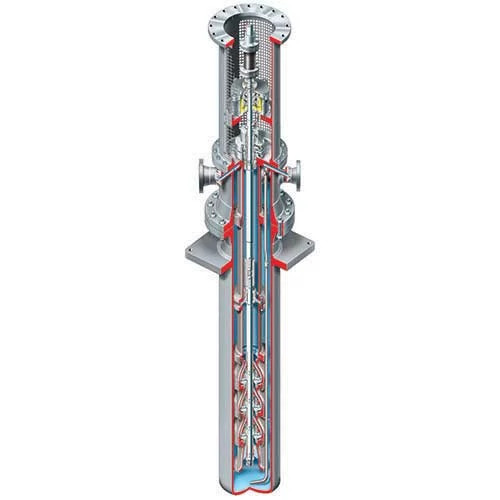

Flowserve WUC Double Case Pump is one of the many innovative Vertical Pumps Flowserve has to offer. Learn more about the specifications here.
Technical Data
- Model series
- Double Case Pumps
Specifications
- Parameter
- Flowserve
- Parameter
- Hydraulic Institute
- Parameter
- ISO 13709 / API 610
- Parameter
- ISO 21049 / API 682 seal chamber and seal flush plans
- Parameter
- ASME VIII, Div 1 and ASME IX
- Parameter
- ATEX, PED, AD2000
- Parameter
- Flows to 500 m³/h (2200 gpm) for radial hydraulics; to 3000 m³/h (13200 gpm) for mixed flow hydraulics
- Parameter
- Heads to 2000 m (6560 ft) for radial hydraulics; to 600 m (1950 ft) for mixed flow hydraulics
- Parameter
- Pressures to 200 bar (2900 psi) for specific radial hydraulics; to 64 bar (930 psi) for specific mixed flow hydraulics
- Parameter
- Temperatures from -200°C (-328°F) up to 350°C (660°F)
- Parameter
- 55 hydraulics (radial hydraulics / mixed flow hydraulics)
- Parameter
- Up to 20 stages
- Parameter
- Suction diameters from 2" to 24" and discharge diameters from 2" to 16"
Recommended Scenarios
- Power
- Nuclear
- Conventional Steam
- Combined Cycle
- Concentrated Solar Power (CSP)
- Geothermal
- Chemicals
- Basic (Organic & Inorganic)
- Specialty (Fine & Consumer)
- Biofuels
- Petrochemicals
- Water
- Water Management
- Agriculture & Irrigation
- Flood Control System
- Oil & Gas
- Upstream Exploration & Production
