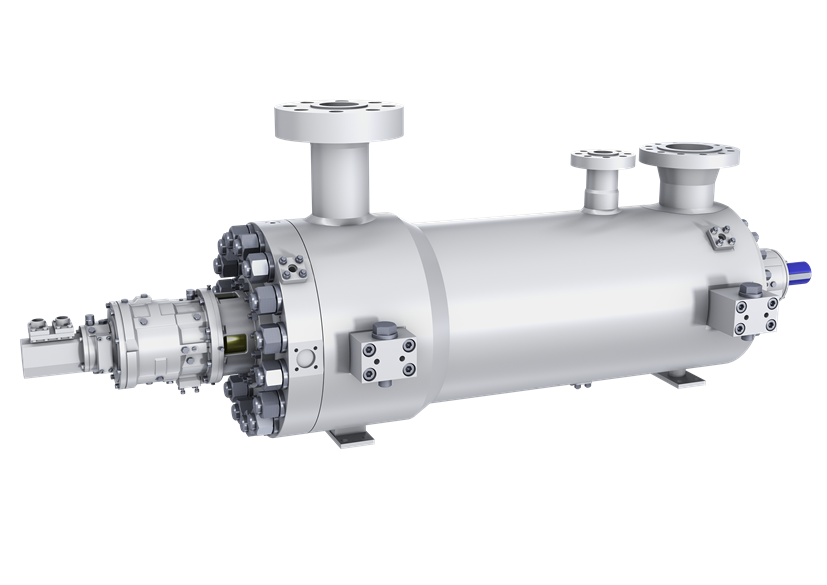

The GSG‑BFP is an ISO 13709 / API 610 Type BB5 pump engineered for feed‑water service in fossil‑fuel, industrial‑power and large biomass‑fired power‑plant facilities. This horizontal pump can be operated without pre‑warming and withstands high forces and moments by virtue of its centerline‑mounted construction.
Technical Data
- Temperature range
- Temperatures: up to 210ºC / 410ºF (higher temperatures upon request)
- Pressure rating
- Discharge pressures: up to 350 bar / 5'080 psi Suction pressures: up to 65 bar / 940 psi
Specifications
- Capacities
- up to 1'000 m3/h / 5'300 US gpm
- Heads
- up to 2'800 m / 10'500 ft
- Discharge sizes
- up to 250 mm / 10 in
