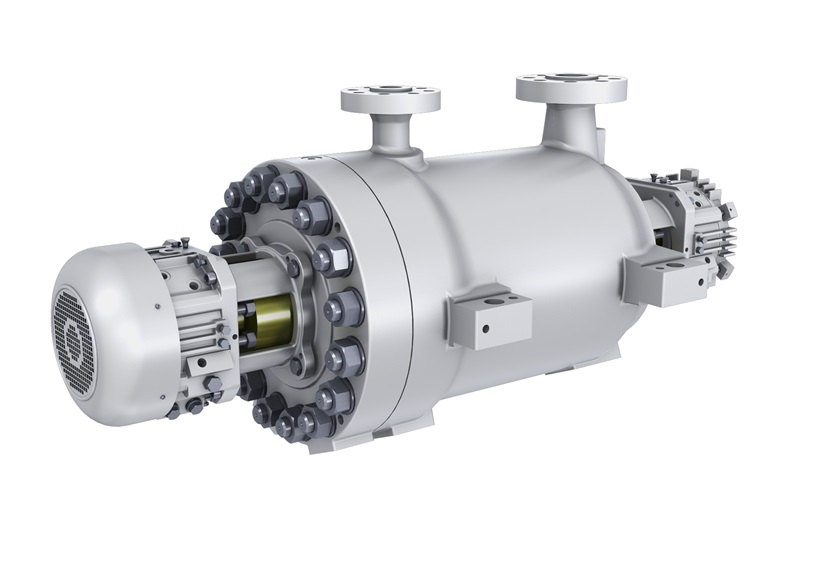

The GSGLF pump is a fully API‑610‑compliant high‑pressure pump designed specifically for low‑flow applications, serving as an alternative to high‑speed OH6 pumps.
Technical Data
- Temperature range
- Temperatures From -29 °C to +200 °C / -20 °F to +400 °F
- Pressure rating
- Pressures Up to 200 bar / 2'900 psi
Specifications
- Capacities
- Up to 35 m3/h / 155 US gpm
- Heads
- Up to 1'800 m / 5'900 ft
- Flange ratings
- 600#, 900#, 1500# and 2500#
- Maximum speed of rotation
- Up to 3'600 rpm
