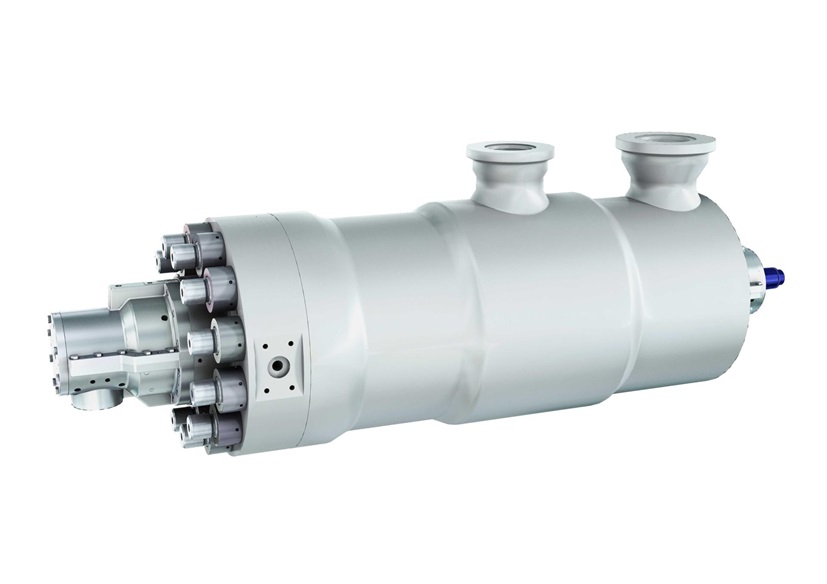

The Sulzer HPcp is an ISO 13709 / API 610 Type BB5 radially‑split barrel pump, designed for water‑injection, offshore crude‑oil transfer and remote‑pipeline services. The HPcp pump is a market‑leading solution for ultra‑high‑pressure applications.
Technical Data
- Temperature range
- Temperatures Up to 200°C / 400°F
- Pressure rating
- Pressures Up to 1,100 bar / 16,000 psi
Specifications
- Capacities
- Up to 4,000 m3/h / 20,000 US gpm
- Heads
- Up to 10,200 m / 33,500 ft
- Discharge sizes
- Up to 500 mm / 20 inches
- Maximum speed of rotation
- Up to 8,850 rpm
