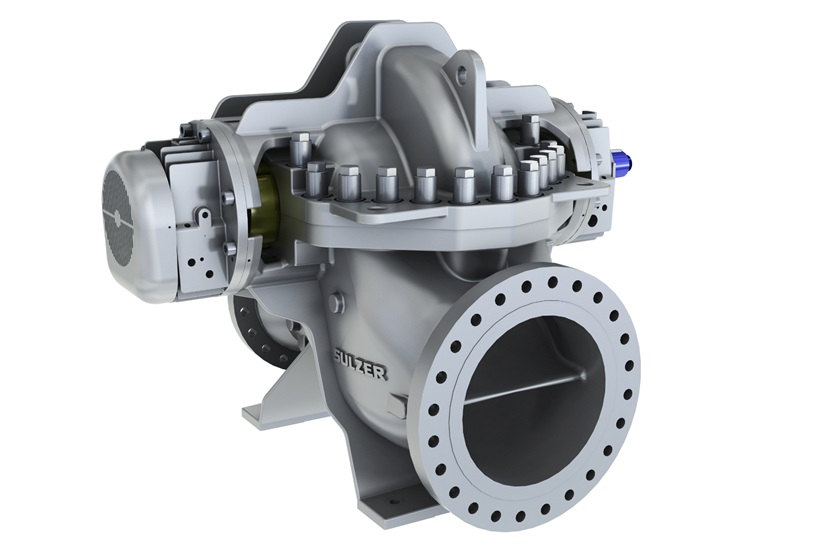

The HSA is an API 610 (ISO 13709) Type BB1 horizontal, axially split, single‑stage, double‑suction between‑bearing process pump. The HSA series is optimized for long‑term continuous operation in refinery and pipeline services. Featuring a robust casing and customized hydraulic designs, it maximizes operational availability and minimizes total life‑cycle costs. The vertical shaft HSAv variant is specifically engineered for offshore environments with limited deck space.
Technical Data
- Temperature range
- Temperatures: Up to 150°C / 300°F
- Pressure rating
- Pressures: Up to 34 bar / 490 psi
Specifications
- Capacities
- Up to 18000 m3/h / 80000 US gpm
- Heads
- Up to 260 m / 850 ft
- Discharge sizes
- 150 to 800 mm / 6 to 32 inches
- Maximum speed of rotation
- Up to 3600 rpm
