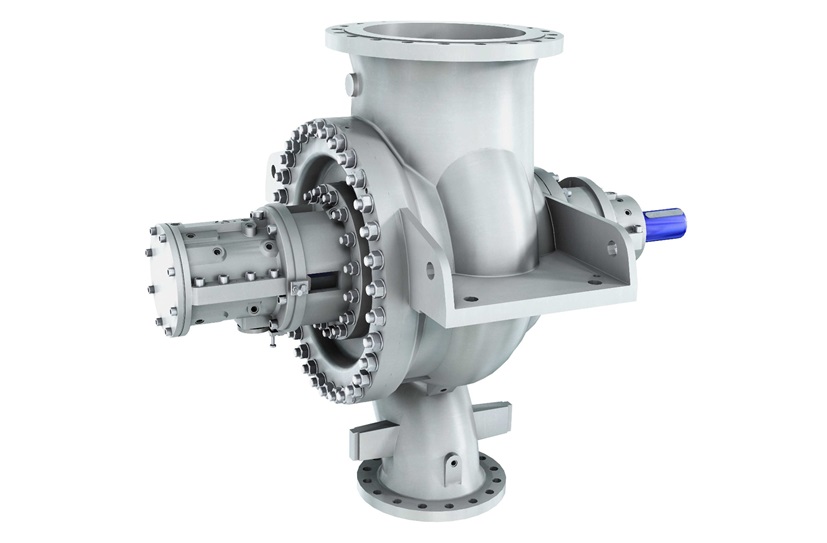

The HZB is a horizontal, radially‑split, single‑stage, double‑suction, centerline‑mounted centrifugal pump. HZB pumps are well‑suited for demanding industrial duties conveying clean cold or hot liquids, and for safety‑related applications within nuclear power plants.
Technical Data
- Temperature range
- Temperatures: Up to 220°C / 428°F
- Pressure rating
- Pressures: Up to 48 bar / 700 psi
Specifications
- Capacities
- Up to 5,500 m3/h / 29,000 US gpm
- Heads
- Up to 340 m / 1,115 ft
- Discharge sizes
- Up to 400 mm / 16 inches
