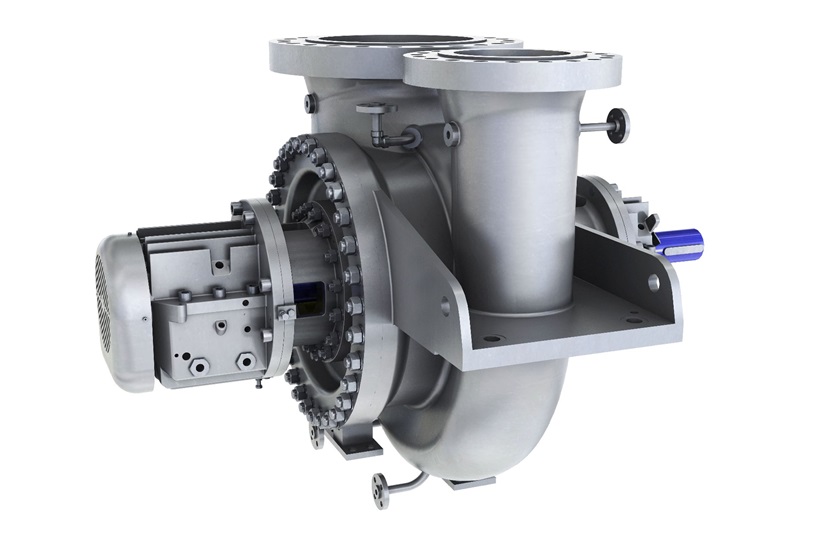

The HZB‑HTF is a horizontal, radially‑split, single‑stage, double‑suction, centerline‑mounted centrifugal pump. It is ideally suited for thermal‑oil duties and applications involving the transfer of clean hot liquids and hazardous fluids.
Technical Data
- Temperature range
- Temperatures Up to 425°C / 800°F
- Pressure rating
- Pressures Up to 48 bar / 700 psi
Specifications
- Capacities
- Up to 4,000 m3/h / 17,500 US gpm
- Heads
- Up to 340 m / 1,115 ft
- Discharge sizes
- Up to 400 mm / 16 inches
