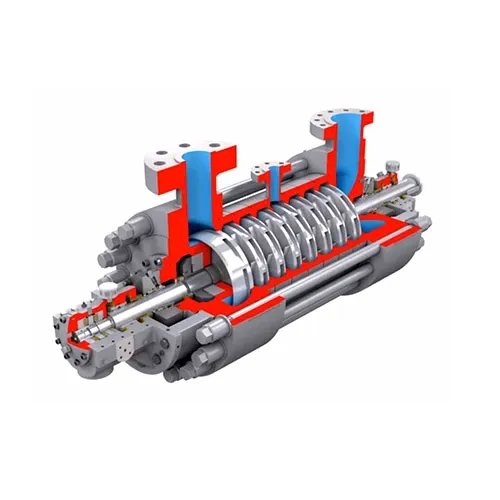

The WXH is a utility‑grade, high‑pressure ring‑section multistage pump featuring a heavy‑duty segmental ring and diffuser construction. Equipped with an axial thrust balancing system and stacked rotor design, it delivers stable and efficient operation under frequent cycling and thermal transient conditions. Ideally suited for boiler feed and turbine cooling auxiliary (TCA) services, the WXH performs reliably in combined‑cycle facilities, solar power plants and other utility power generation applications.
Technical Data
- Temperature range
- Temperatures up to 250°C (480°F)
- Pressure rating
- Pressures up to 310 bar (4500 psi)
Specifications
- Flowserve
- Hydraulic Inst.
- Flows to
- 1136 m3/h (5000 gpm)
- Heads to
- 2438 m (8000 ft)
- Size Range
- 3" to 10";75mm to 250mm
