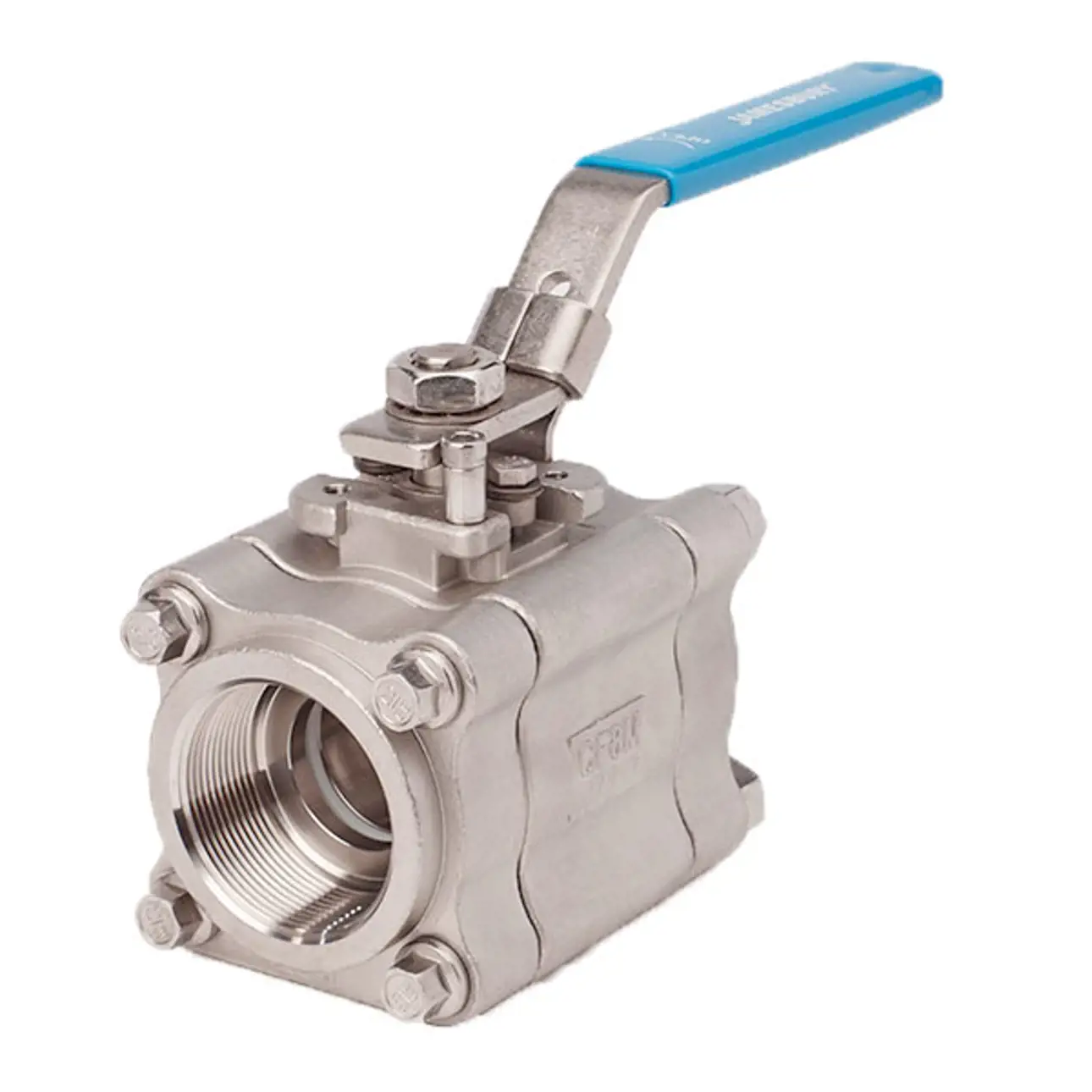

Three-piece resilient seated ball valve with multiple end connection options. This is our preferred ball valve model for applications requiring a wide range of end connections.
Specifications
- Size range
- 1/2” – 21/2” (DN 15 – 65) standard port;1/2” – 2” (DN 15 – 50) full port
- Temperature
- 260 °C / 500 °F
- Pressure rating
- ANSI Class 800 or CWP to 2500 psi (172 bar) see literature
- Materials
- Carbon steel, stainless steel, Monel, Hastelloy C materials
- Standards
- Meets ISO-15848 and other emissions standards
