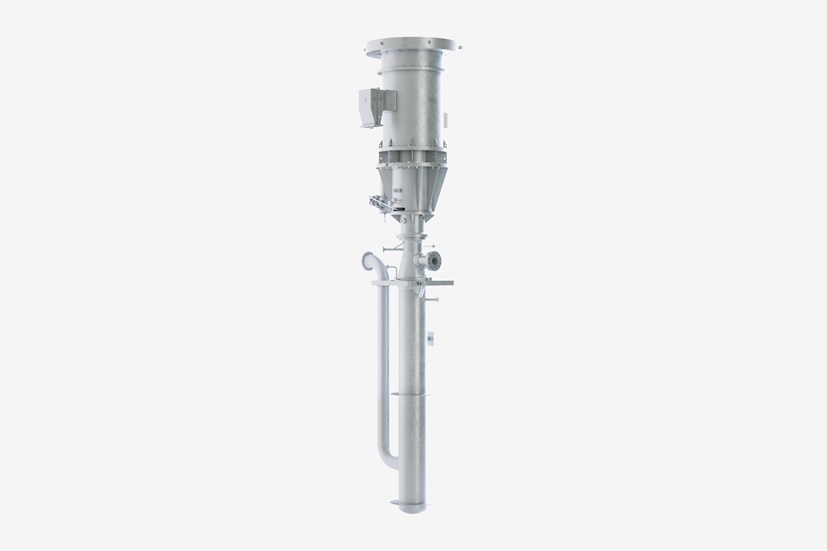

The JVCR is an ISO 13709 / API 610 Type VS6 vertical multistage can‑type pump for applications with limited available NPSH (NPSHa). Broad selections of hydraulics, discharge head assemblies and pressure ratings are available to meet project‑specific requirements.
Technical Data
- Temperature range
- Temperatures: -170°C to 200°C / -280°F to 400°F
- Pressure rating
- Pressures: Up to 150 bar / 2'175 psi
Specifications
- Capacities
- Up to 1'130 m3/h / 5'000 US gpm
- Heads
- Up to 2'450 m / 8'000 ft
- Discharge sizes
- Up to 500 mm / 20 inches
- Maximum speed of rotation
- 3'600 rpm
