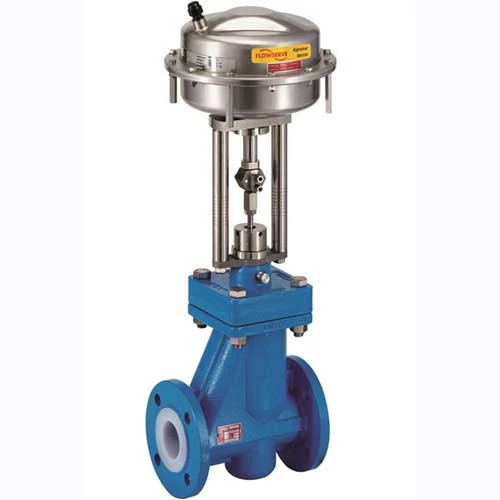

Kämmer® LinedFlow Control Valve is one of the many innovative Linear Control Valves Flowserve has to offer. Learn more about the specifications here.
Technical Data
- Model series
- Linear Globe/Angle Control Valves
Specifications
- Parameter
- Standards and Certifications
- IS0 9001
- 2008
- Parameter
- PED Directive 97/23/EC
- Parameter
- SIL Certification
- Parameter
- CRN Certification (Canadian Registration)
- Parameter
- ATEX Directive 94/9/EC
- Parameter
- CE Mark
- Parameter
- Electronic Certifications for Logix Positioners mounted on Kammer Valves
- Parameter
- CSA
- Parameter
- FM
- Parameter
- SIRA
- Parameter
- TR CU
- Parameter
- INMETRO
- Parameter
- TESTSAFE
- Parameter
- KOSHA
- Parameter
- CCOE
- Body Size
- NPS 1/2, 3/4, 1, 1-1/2, 2, 3, 4, 6
- Packing
- PTFE, PTFE V-Ring
- Body Style
- Globe, PFA Lined Ductile Iron
- Gaskets
- FEP-Viton
- Trim Type
- Standard
- Body Bolting
- 316 SS
- Trim Material
- TFM, Hastelloy C (C276) Inserts
- Actuator
- KP Pneumatic Diaphragm Actuator
- Seat Design
- Screwed
- Paint
- Flowserve Standard Paint (no offshore or special paint)
- Leakage Class
- Class IV, Class VI
- Positioner
- Logix 420, Logix 520MD+, Logix 3200, Logix 3800, BETA, and XL
