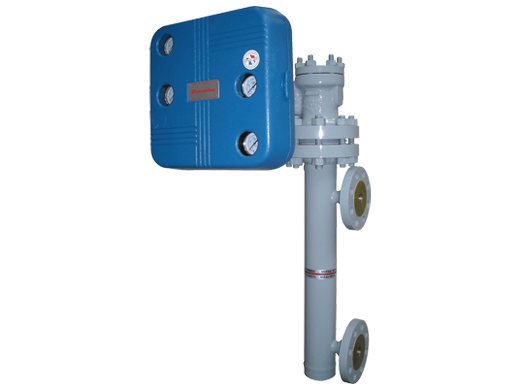

Designed for tank‑level monitoring, the 12800‑Series pneumatic level controllers perform level control and transmission functions for vessels containing one fluid or a two‑liquid interface.
>
Technical Data
- Pressure rating
- Range: 14” through 120” (355 through 3048 mm)
- Body material
- carbon steel; stainless steel; chrome-moly
Specifications
- Displacer materials
- stainless steel; other materials on request
- Torque Tube materials
- Inconel; stainless steell other materials on request
- Ratings and connections
- flanged: ANSI 150 – 2500, UNI-DIN 10 - 100; screwed: NPT-F (1 1/2”, 2”); welded
