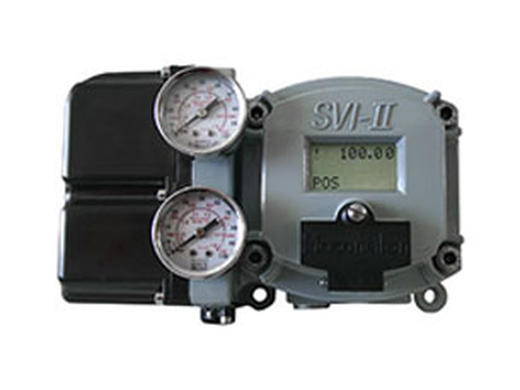

The Baker Hughes SVI™ II AP (Advanced Performance Smart Valve Interface) features a high-precision 32-bit microprocessor-based digital valve positioner equipped with an on-site local interface. Designed for pneumatic actuator regulation, the device operates via a conventional two-wire 4-20mA control loop and supports full bidirectional data communication through the HART® protocol. Boasting a versatile and universal structural design, this positioner enables seamless retrofitting and direct replacement of conventional analog positioners. It is fully compatible with both Masoneilan and third-party pneumatic actuators, covering all single-acting and double-acting application scenarios.
Technical Data
- Temperature range
- -50°C to +85°C
- Pressure rating
- Single-Acting: 20 to 100 psi max (1.4 to 6.9 bar) Double-Acting: 20 to 150 psi max (1.4 to 10.3 bar)
- Body material
- Copper-free Aluminum Housing
Specifications
- Signal - Communication
- HART 5 or 7 over 4-20mA
- Diagnostics
- Standard Diagnostics;Advanced Diagnostics
- Pneumatics Action
- Single or Double Acting, fail safe;Rotary and linear
- Air Delivery
- 280 SLPM @ 30psi
