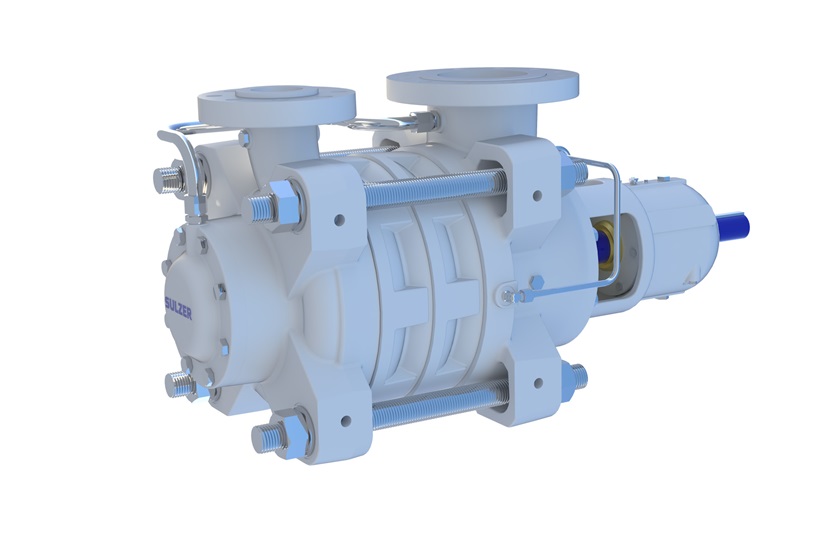

MBN‑series pumps are well‑suited for high‑pressure process duties. A wide selection of nozzle‑orientation options delivers high installation flexibility and simplifies piping layout. The thrust bearing and shaft seal can be replaced easily without disassembly of the suction casing.
Technical Data
- Temperature range
- Temperatures: Up to 180°C / 355°F
- Pressure rating
- Pressures: Up to 140 bar / 2'030 psi
Specifications
- Capacities
- Up to 700 m3/h / 3,080 US gpm
- Heads
- Up to 900 m / 2'950 ft
- Discharge sizes
- Up to 150 mm / 6 inches
